NSN 5340-01-203-5670
Part Details | SLIDING DOOR TRACK BRACKET
5340-01-203-5670 A fabricated item for fastening to a supporting member and which holds and supports the sliding door track. It may have attachments and serve additional functions as a center or end stop for the door, or to lock adjoining sections of track.
Alternate Parts: 8722178, 5340-01-203-5670, 01-203-5670, 5340012035670, 012035670
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 15, 1985 | 01-203-5670 | 06699 ( BRACKET, TRACK, SLIDING DOOR ) |

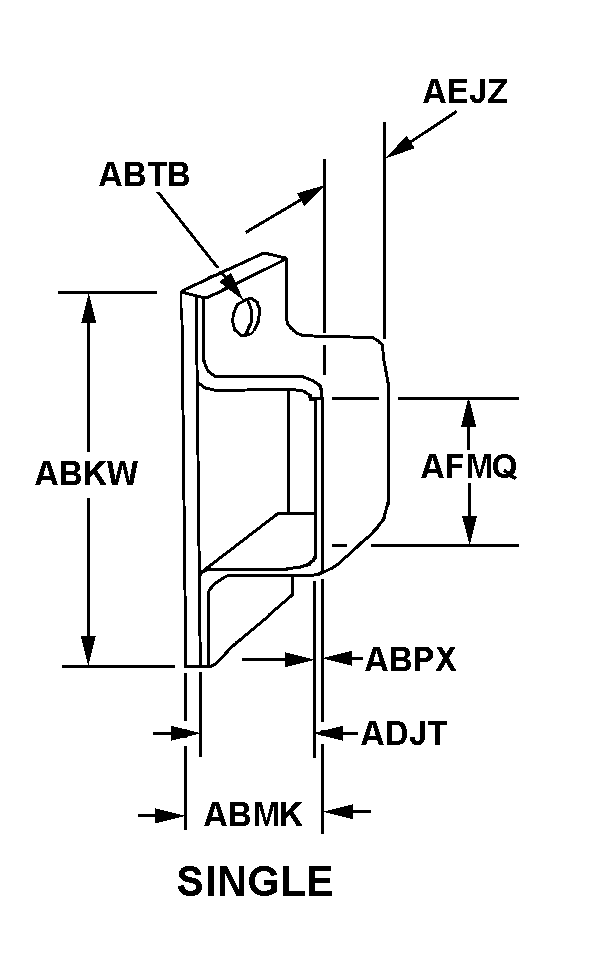

REFERENCE DRAWINGS & PICTURES
SINGLE
Cross Reference | NSN 5340-01-203-5670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8722178 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-01-203-5670
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AQQ-S-698 FED SPEC SINGLE MATERIAL RESPONSE |
| STYLE DESIGNATOR | SINGLE |
| OVERALL HEIGHT | 4.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.761 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.187 INCHES NOMINAL |
| MOUNTING HOLE DIAMETER | 0.406 INCHES NOMINAL |
| INSIDE WIDTH | 0.387 INCHES NOMINAL |
| DEPTH | 1.000 INCHES NOMINAL |
| INSIDE HEIGHT | 2.125 INCHES NOMINAL |
