NSN 5340-01-206-2354
Part Details | CORROSION PREVENTIVE ANODE
5340-01-206-2354 An item which sacrificially corrodes when coupled to a more noble metal in a conducting medium.
Alternate Parts: 50825, W3T105296, 5340-01-206-2354, 01-206-2354, 5340012062354, 012062354
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 16, 1985 | 01-206-2354 | 13154 ( ANODE, CORROSION PREVENTIVE ) |
REFERENCE DRAWINGS & PICTURES

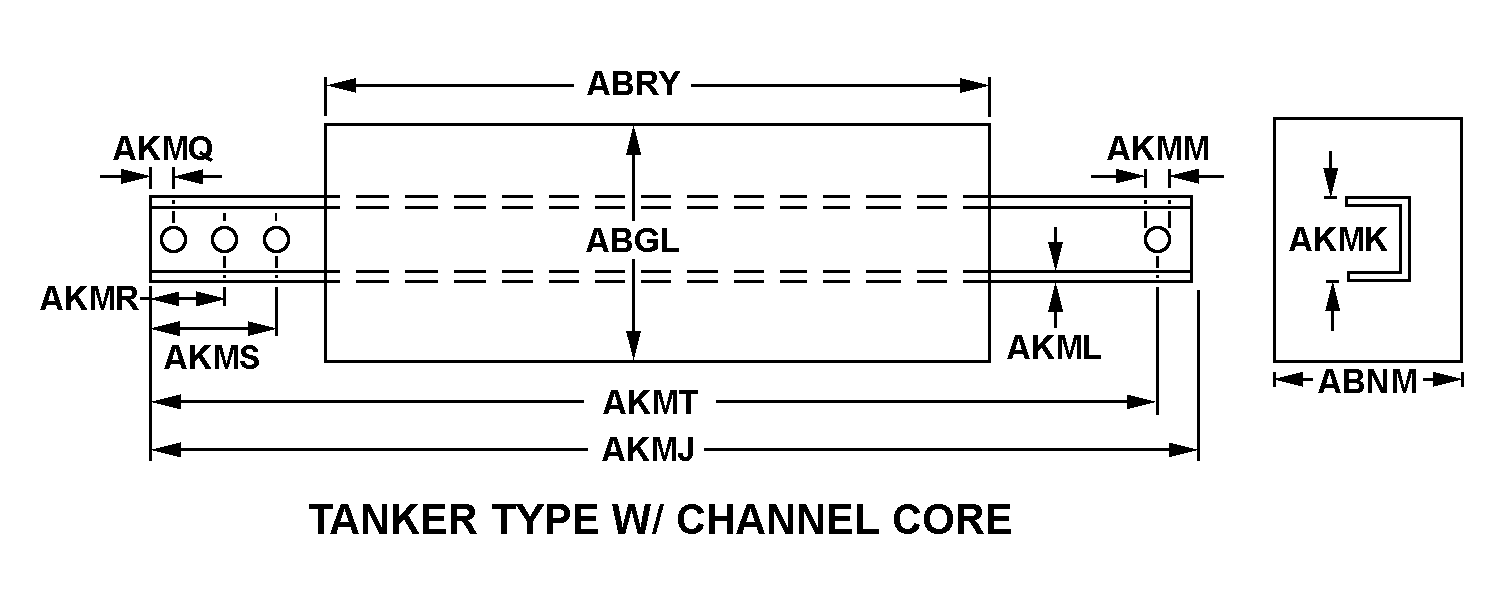

TANKER TYPE WITH CHANNEL CORE
Cross Reference | NSN 5340-01-206-2354
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 50825 | 89357 | EVOQUA WATER TECHNOLOGIES LLCDBA ELECTRIC CATALYTIC PRODUCTS |
| W3T105296 | 89357 | EVOQUA WATER TECHNOLOGIES LLCDBA ELECTRIC CATALYTIC PRODUCTS |
Technical Data | NSN 5340-01-206-2354
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | PT0000AKQ PLATINUM |
| STYLE DESIGNATOR | TANKER TYPE WITH CHANNEL CORE |
| WIDTH | 4.375 INCHES NOMINAL |
| THICKNESS | 1.000 INCHES NOMINAL |
| LENGTH | 48.000 INCHES NOMINAL |
| CORE LENGTH | 45.501 INCHES NOMINAL |
| CORE WIDTH | 2.687 INCHES NOMINAL |
| CORE THICKNESS | 1.000 INCHES NOMINAL |
| CORE HOLE DIAMETER | 0.375 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF FIRST HOLE | 1.437 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF SECOND HOLE | 2.937 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF THIRD HOLE | 14.437 INCHES NOMINAL |
| DISTANCE FROM EDGE TO CENTER OF FOURTH HOLE | 20.937 INCHES NOMINAL |
| CONSTRUCTION | SOLID |
| WEIGHT | 30.0 POUNDS |
| PRECIOUS MATERIAL | PLATINUM |
| PRECIOUS MATERIAL AND LOCATION | EXTERNAL COATING PLATINUM |
