NSN 5340-01-206-5784
Part Details | WEBBING STRAP
5340-01-206-5784 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 12E2067809, 12E2067-809, 5340-01-206-5784, 01-206-5784, 5340012065784, 012065784
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | APR 19, 1985 | 01-206-5784 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

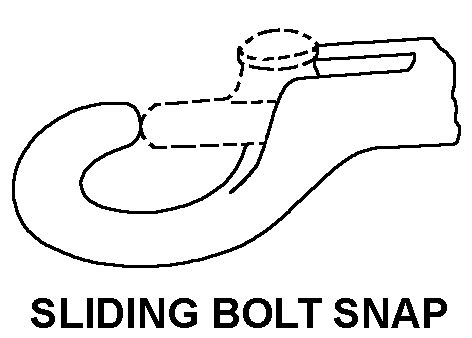

SLIDING BOLT SNAP
Cross Reference | NSN 5340-01-206-5784
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12E2067-809 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 5340-01-206-5784
| Characteristic | Specifications |
|---|---|
| LENGTH | 33.250 INCHES NOMINAL |
| END TYPE | BOTH W/ATTACHMENTS |
| HOOK STYLE DESIGNATOR | SLIDING BOLT SNAP |
| HOOK CONNECTION TYPE | NONSWIVELING |
| HOOK MATERIAL | STEEL |
| HOOK QUANTITY | 1 |
| FASTENED HOOK FEATURE | INCLUDED |
| HOOK FASTENING METHOD | SEWED |
| PAD FASTENING METHOD | SEWED |
| RING SHAPE | ROUND |
| FASTENED RING FEATURE | NOT INCLUDED |
| RING LOCATION | LOCATED ON EDGE OF PAD |
