NSN 5340-01-209-8582
Part Details | SLIDING DOOR TRACK
5340-01-209-8582 A fabricated form made of metal or plastic, which serves as a runway for a sliding door hanger and which is bolted directly to a structure or held by means of brackets.
Alternate Parts: 9376400, 5340-01-209-8582, 01-209-8582, 5340012098582, 012098582
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 04, 1985 | 01-209-8582 | 06690 ( TRACK, SLIDING DOOR ) |

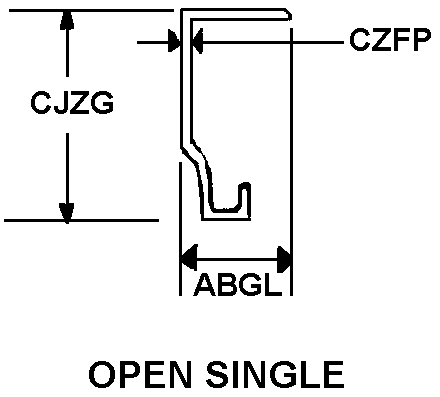

REFERENCE DRAWINGS & PICTURES
OPEN SINGLE
Cross Reference | NSN 5340-01-209-8582
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9376400 | 19200 | US ARMY ARDEC RDECOM |
Technical Data | NSN 5340-01-209-8582
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | OPEN SINGLE |
| WIDTH | 2.135 INCHES NOMINAL |
| HEIGHT ABOVE BEARING SURFACE | 3.072 INCHES NOMINAL |
| SECTION SHAPE | STRAIGHT |
