NSN 5340-01-215-9836
Part Details | SHELF BRACKET
5340-01-215-9836 An item having two legs forming a 90 degree angle (1.5705 radians) and may be rigid or folding. It is to be fastened to a wall and so designed to hold and support a shelf.
Alternate Parts: 123145371, 12314537-1, 12314537, 5340-01-215-9836, 01-215-9836, 5340012159836, 012159836
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 04, 1985 | 01-215-9836 | 06604 ( BRACKET, SHELF ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
THREE HOLES
SQUARE
THREE HOLES

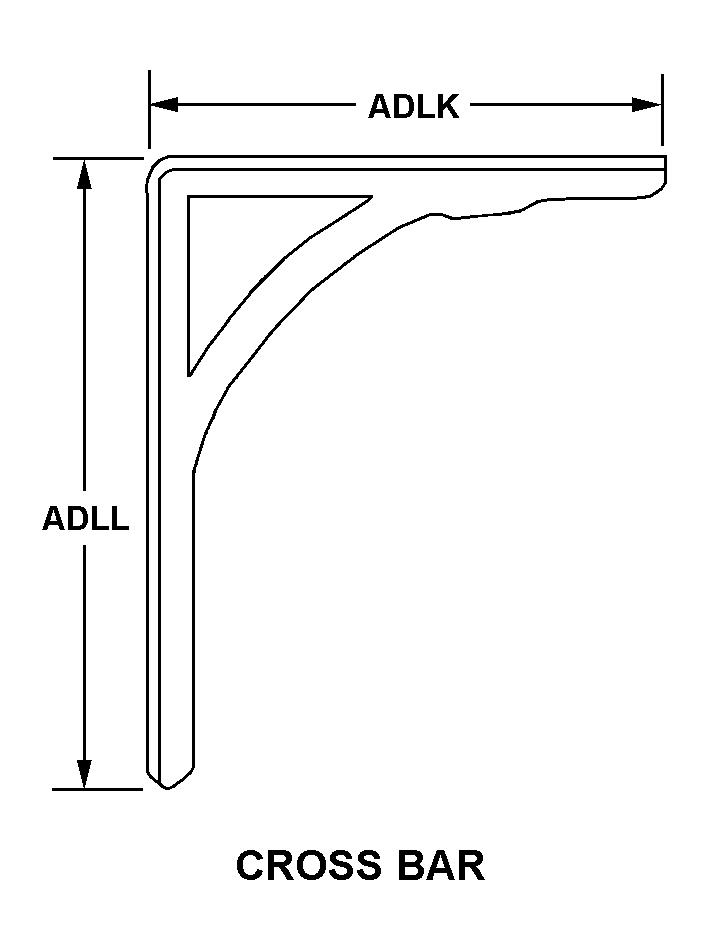

CROSS BAR
Cross Reference | NSN 5340-01-215-9836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12314537-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 12314537 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-01-215-9836
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A36 ASSN STD SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | PAINT |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-46168 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | CROSS BAR |
| FIRST LEG LENGTH | 11.000 INCHES NOMINAL |
| SECOND LEG LENGTH | 22.000 INCHES NOMINAL |
| FIRST LEG STYLE | SQUARE |
| FIRST LEG WIDTH | 3.000 INCHES NOMINAL |
| SECOND LEG WIDTH | 3.000 INCHES NOMINAL |
| SECOND LEG HOLE DIAMETER | 0.530 INCHES MINIMUM AND 0.539 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 1.375 INCHES NOMINAL |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 4.375 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG LENGTH | 8.000 INCHES NOMINAL |
| SECOND LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG LENGTH | 8.313 INCHES NOMINAL |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | THREE HOLES |
| MOUNTING HOLE TYPE | PLAIN |
| SPECIAL FEATURES | COLOR FOREST GREEN |
| END ITEM IDENTIFICATION | HIAB CRANE HEMTT (HEAVY EXPANDED MOBILITY TACTICAL TRUCK) |
