NSN 5340-01-222-5248
Part Details | SLIDING DOOR TRACK
5340-01-222-5248 A fabricated form made of metal or plastic, which serves as a runway for a sliding door hanger and which is bolted directly to a structure or held by means of brackets.
Alternate Parts: 5942899, 5340-01-222-5248, 01-222-5248, 5340012225248, 012225248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | DEC 12, 1985 | 01-222-5248 | 06690 ( TRACK, SLIDING DOOR ) |
REFERENCE DRAWINGS & PICTURES

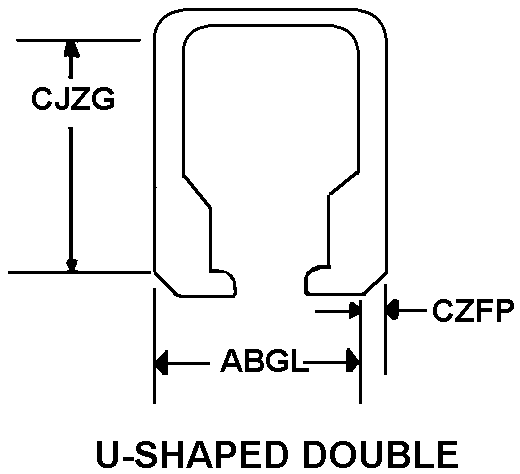

U-SHAPED DOUBLE
Cross Reference | NSN 5340-01-222-5248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5942899 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5340-01-222-5248
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | U-SHAPED DOUBLE |
| WIDTH | 1.224 INCHES NOMINAL |
| THICKNESS | 0.063 INCHES NOMINAL |
| HEIGHT ABOVE BEARING SURFACE | 0.724 INCHES NOMINAL |
| SECTION SHAPE | STRAIGHT |
| SPECIAL FEATURES | 3 MOUNTING HOLES 0.261 IN. DIA |
