NSN 5340-01-226-7379
Part Details | RETAINING STRAP
5340-01-226-7379 A preformed item of rigid or semirigid material designed to partially surround other items such as cable(s), conduit(s), pipe(s), tube(s), or rod(s) or to completely surround them by means of a bridge strap(s) (which does not tightly clamp against the complete periphery). It is designed to retain and/or position the items close to a structure. It may be fastened to the structure on one end, both ends, or in the center. See also CLAMP, LOOP. Excludes BRACKET, PIPE; STRAP, LEATHER and STRAP, WEBBING.
Alternate Parts: 12331901, 5340-01-226-7379, 01-226-7379, 5340012267379, 012267379
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | FEB 21, 1986 | 01-226-7379 | 05072 ( STRAP, RETAINING ) |
REFERENCE DRAWINGS & PICTURES

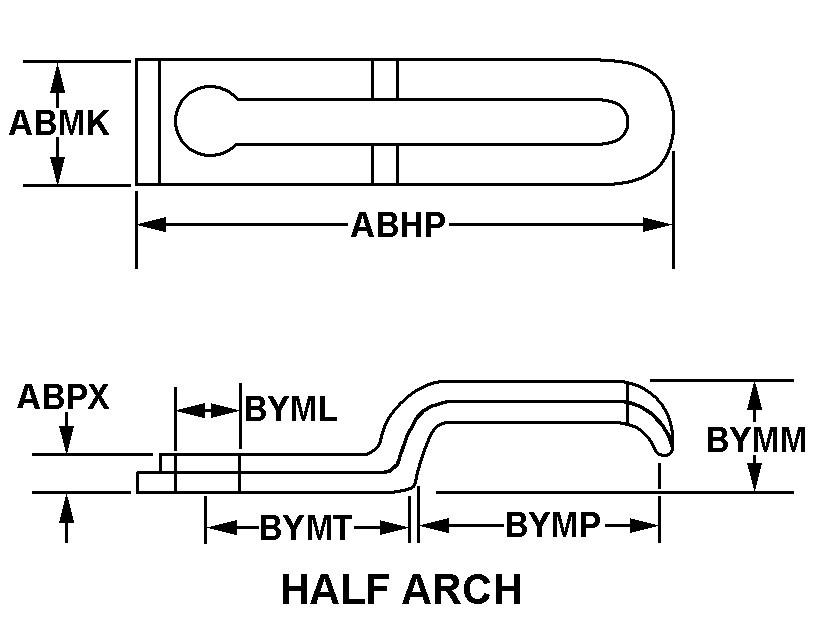

HALF ARCH
Cross Reference | NSN 5340-01-226-7379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12331901 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5340-01-226-7379
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5083 |
| STYLE DESIGNATOR | HALF ARCH |
| OVERALL LENGTH | 6.300 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.500 INCHES NOMINAL |
| MOUNTING HOLE SIZE | 0.440 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| CUSHION | NOT INCLUDED |
| MOUNTING PAD | NOT INCLUDED |
