NSN 5340-01-241-4282
Part Details | ROD END CONNECTOR
5340-01-241-4282 An item which has one end designed to form a rigid connection on a rod, shaft, turnbuckle or the like by means of welding, threading and/or pinning. The opposite end provides a hinged or semirigid method of fastening or attaching to another part by means of a protruding tongue or block. May include provisions for locking. See also CLEVIS, ROD END and ROD END, THREADED. For items specifically designed for aviation, see CONNECTOR, ROD END, AVIATION.
Alternate Parts: 830663, DS830663, DS-830663, 5340-01-241-4282, 01-241-4282, 5340012414282, 012414282
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | SEP 25, 1986 | 01-241-4282 | 03439 ( CONNECTOR, ROD END ) |

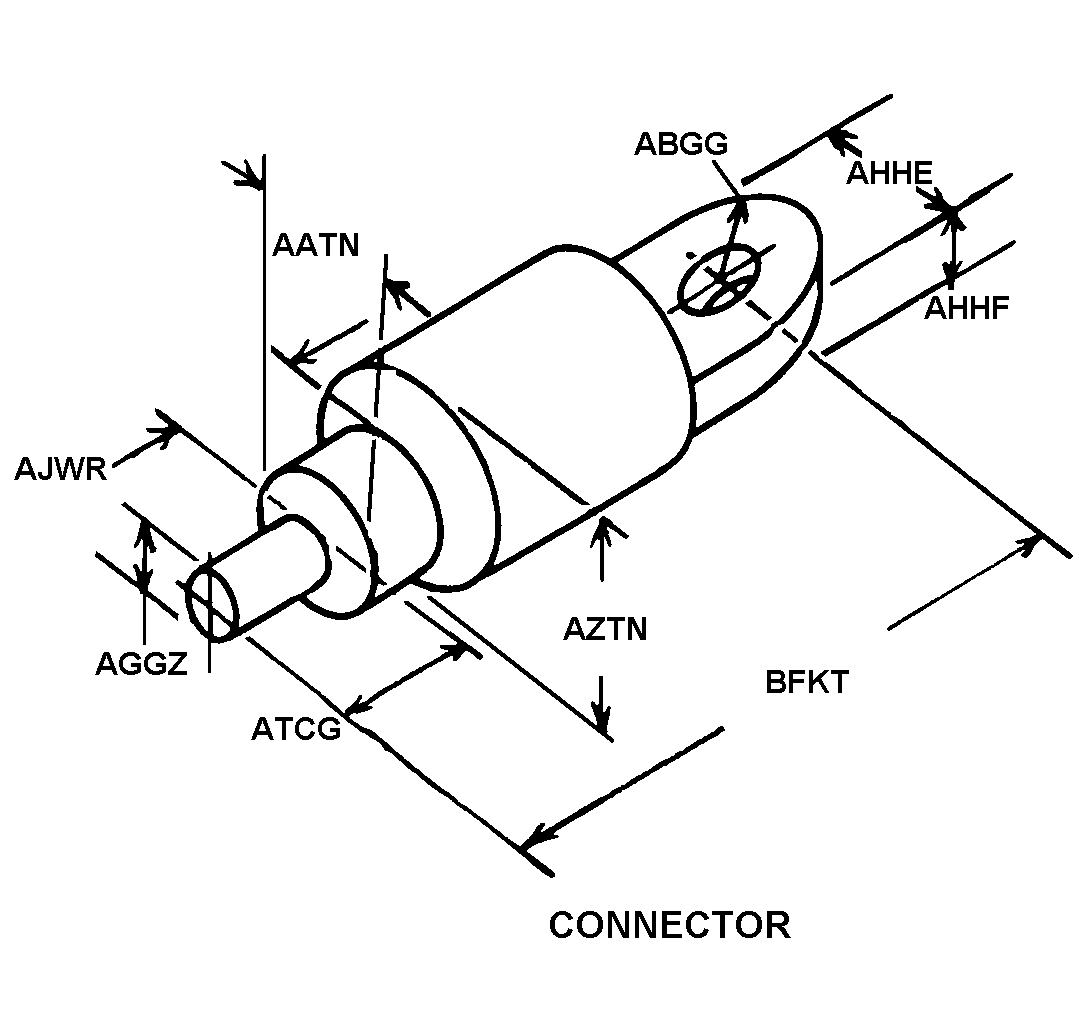

REFERENCE DRAWINGS & PICTURES
CONNECTOR
Cross Reference | NSN 5340-01-241-4282
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 830663 | 90166 | EATON AEROSPACE LLCDBA EATON AEROSPACE JACKSON |
| DS-830663 | 90166 | EATON AEROSPACE LLCDBA EATON AEROSPACE JACKSON |
Technical Data | NSN 5340-01-241-4282
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CONNECTOR |
| BODY OVERALL DIAMETER | 0.750 INCHES NOMINAL |
| SPECIAL FEATURES | 6.469 IN. OVERALL LG; ONE END IS THREADED; PIN EXTENSION 0.250 IN. L6 |
