NSN 5340-01-242-8617
Part Details | CLAMPING CATCH
5340-01-242-8617 A positive fastening device consisting of a mountable base with an extended loop, claw, or the like. It may include a catch strike and mounting hardware for its complete installation on flat surfaces. The loop, claw, or the like can be manually engaged or disengaged readily for the purpose of securing the mating sections of a suitcase, locker-trunk, shipping and storage container, prefabricated building, tool chest or the like. Excludes CATCH, ELBOW; CATCH, FLUSH; CATCH, FRICTION; and LATCH or LOCK (as modified).
Alternate Parts: 4404 58, 4404 5/8, TC82Z1501, TC82Z15-01, 5340-01-242-8617, 01-242-8617, 5340012428617, 012428617
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | OCT 17, 1986 | 01-242-8617 | 26525 ( CATCH, CLAMPING ) |
REFERENCE DRAWINGS & PICTURES

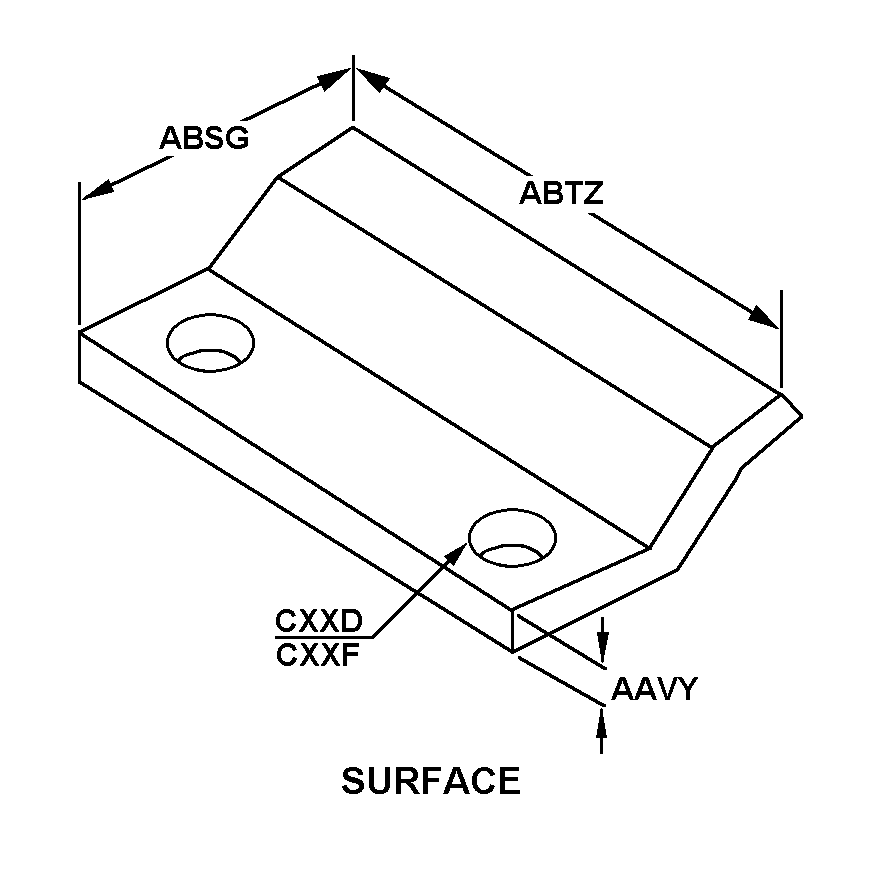

SURFACE
Cross Reference | NSN 5340-01-242-8617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4404 5/8 | 21192 | EXCELSIOR HARDWARE CO |
| TC82Z15-01 | 53031 | TA INSTRUMENT CASE CO |
Technical Data | NSN 5340-01-242-8617
| Characteristic | Specifications |
|---|---|
| ENGAGING SURFACE WIDTH | 0.700 INCHES NOMINAL |
| HOLE QUANTITY | 2 |
| CATCH STRIKE STYLE | SURFACE |
| MATERIAL THICKNESS | 0.093 INCHES NOMINAL |
| WIDTH | 0.660 INCHES NOMINAL |
| OVERALL LENGTH | 0.700 INCHES NOMINAL |
| SURFACE HOLE DIAMETER | 0.128 INCHES NOMINAL |
| SURFACE HOLE QUANTITY | 2 |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.500 INCHES NOMINAL |
| DESIGN TYPE | CLAW ENGAGING |
| OPERATION METHOD | RELEASE BAR ON OUTSIDE |
