NSN 5340-01-256-4414
Part Details | SPRING TENSION CLIP
5340-01-256-4414 A preformed item of semirigid material designed to retain, position, fasten, or support other items, such as cable(s), access cover(s), by its own inherent spring action. It may be fastened to a structure by bolt(s), clip(s), screw(s), and the like. For items conducting electric current, see CLIP, ELECTRICAL or CLAMP, ELECTRICAL. For items which partially surround an item, see STRAP, RETAINING. For items which entirely surround an item and do not have inherent spring tension, see CLAMP, LOOP. See also CLIP, RETAINING. Do not use if a more specific item name is available.
Alternate Parts: 20076341, 2007634-1, 5340-01-256-4414, 01-256-4414, 5340012564414, 012564414
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JUN 05, 1987 | 01-256-4414 | 20815 ( CLIP, SPRING TENSION ) |
REFERENCE DRAWINGS & PICTURES

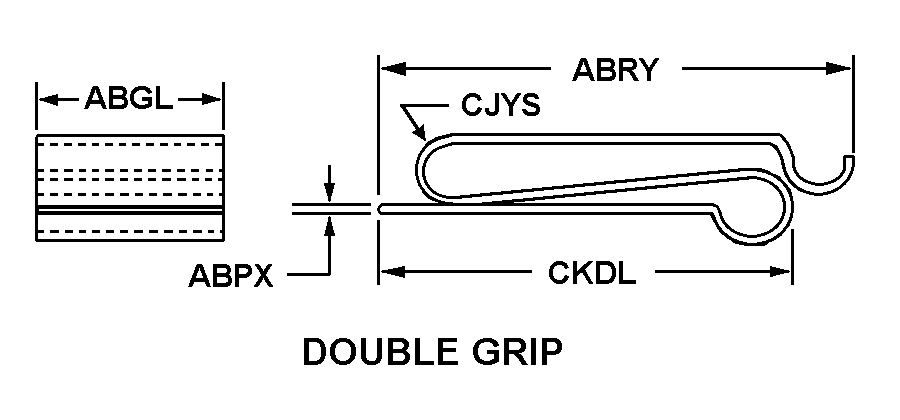

DOUBLE GRIP
Cross Reference | NSN 5340-01-256-4414
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2007634-1 | 17576 | GOODRICH CORPDBA GOODRICH CORP |
Technical Data | NSN 5340-01-256-4414
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 8 DOUBLE GRIP |
| HOLE DIAMETER | 0.315 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.063 INCHES NOMINAL |
| LENGTH | 1.700 INCHES NOMINAL |
| SPECIAL FEATURES | CRITICAL DIMENSIONS-ONE LEG LONGER, ONE HOLE THRU BOTH LEGS; 1 COAT EPOXY PRIMER-WHITE 2 COATS URETHANE |
| CRITICALITY CODE JUSTIFICATION | AAGAV$$AFEAT |
| END ITEM IDENTIFICATION | LANDING GEAR SYSTEMS/COMPONENTS |
