NSN 5340-01-260-8188
Part Details | HAND CRANK
5340-01-260-8188 An item consisting of a radial arm having a handle parallel to its pivoted axis for transmitting motion to a shaft or object. It may have an integral extension. For items without an integral handle, see, ARM (1), HAND CRANK. Excludes HANDWHEEL; and HANDLE, WINDOW REGULATOR.
Alternate Parts: 27692654, 2769265-4, 24395311, 2439531-1, 5340-01-260-8188, 01-260-8188, 5340012608188, 012608188
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 05, 1987 | 01-260-8188 | 17533 ( CRANK, HAND ) |
REFERENCE DRAWINGS & PICTURES
EXTERNAL
STRAIGHT

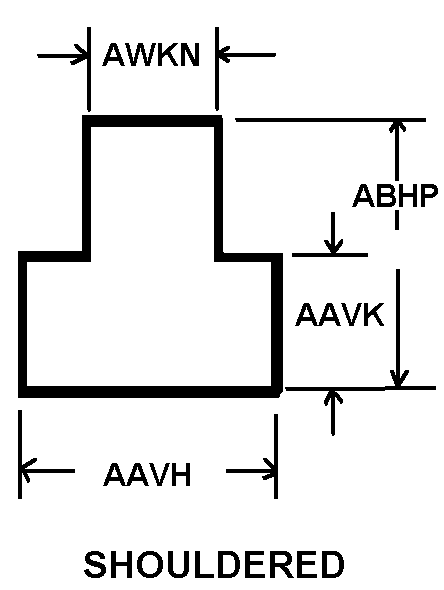

SHOULDERED
Cross Reference | NSN 5340-01-260-8188
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2769265-4 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
| 2439531-1 | 96214 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5340-01-260-8188
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | ST1917AAB STEEL, AMS 5643 |
| SURFACE TREATMENT AND LOCATION | PSC000AAB PASSIVATED W/BLACK OXIDE |
| ARM STYLE | STRAIGHT |
| CRANK THROW LENGTH | 0.805 INCHES MINIMUM AND 0.815 INCHES MAXIMUM |
| DRIVE END STYLE | EXTERNAL |
| DRIVE END OUTSIDE DIAMETER | 0.182 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| SHANK HEIGHT | 0.130 INCHES MINIMUM AND 0.135 INCHES MAXIMUM |
| DRIVE FACILITY STYLE | SHOULDERED |
| SHOULDER DIAMETER | 0.872 INCHES NOMINAL |
| SHOULDER LENGTH | 0.379 INCHES NOMINAL |
| OVERALL LENGTH | 0.104 INCHES MINIMUM AND 0.108 INCHES MAXIMUM |
| DRIVE FACILITY OUTSIDE DIAMETER | 0.260 INCHES NOMINAL |
| CRANK OVERALL LENGTH | 1.047 INCHES MINIMUM AND 1.052 INCHES MAXIMUM |
| MOUNTING FACILITY | UNTHREADED MOUNTING HOLES |
| MOUNTING FACILITY DIAMETER | 0.260 INCHES NOMINAL |
| HANDLE MOUNTING METHOD | THREAD |
| HANDLE ROTATING FEATURE | NOT INCLUDED |
| RATCHET | NOT INCLUDED |
| SPECIAL FEATURES | MTG HOLE 0.089 DIA X 0.42 DP CSK 90 DEG X 0.12 DIA,0.112-40 UNC-2B X 0.25 DP |
