NSN 5340-01-275-6749
Part Details | EXPANSION SHIELD
5340-01-275-6749 An item for inserting in a hole, usually in masonry, designed to be expanded either by means of a setting tool or by the insertion of the bolt, screw or nail for mounting or attaching another object. It may include the bolt, screw or nail.
Alternate Parts: 98547A112, 5340-01-275-6749, 01-275-6749, 5340012756749, 012756749
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAR 25, 1988 | 01-275-6749 | 08322 ( SHIELD, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

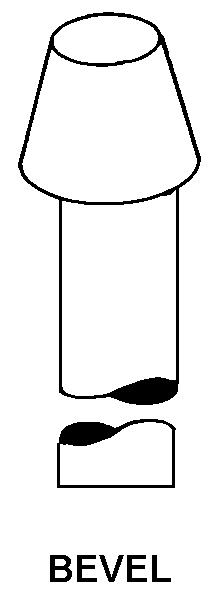

BEVEL
SINGLE EXPANSION MACHINE SCREW
Cross Reference | NSN 5340-01-275-6749
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98547A112 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Technical Data | NSN 5340-01-275-6749
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| STYLE DESIGNATOR | 3 SINGLE EXPANSION MACHINE SCREW |
| HOLE ACCOMMODATION DIAMETER | 0.188 INCHES NOMINAL |
| INSERT TYPE FOR WHICH DESIGNED | MACHINE SCREW |
| INSERT SIZE | N0.8 DIA |
| UNIT QUANTITY | 100 |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
| THREAD PROVISION | UNTHREADED |
| FEATURES PROVIDED | CLOSED END AND INSTALLATION SETTING TOOL |
| HEAD STYLE | 0 BEVEL |
