NSN 5340-01-279-9155
Part Details | ANGLE BRACKET
5340-01-279-9155 A ridge item, usually of flat material, formed into a dihedral angle (generally a right angle) which may be reinforced; it is designed to position, align, or support an item(s) in relation to another. Excludes BRACE (as modified); BRACKET (1), MOUNTING; and BRACKET, SHELF.
Alternate Parts: 6257926001, 625-7926-001, 5340-01-279-9155, 01-279-9155, 5340012799155, 012799155
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | MAY 26, 1988 | 01-279-9155 | 16900 ( BRACKET, ANGLE ) |
REFERENCE DRAWINGS & PICTURES
SQUARE
CUT OUT
ONE HOLE

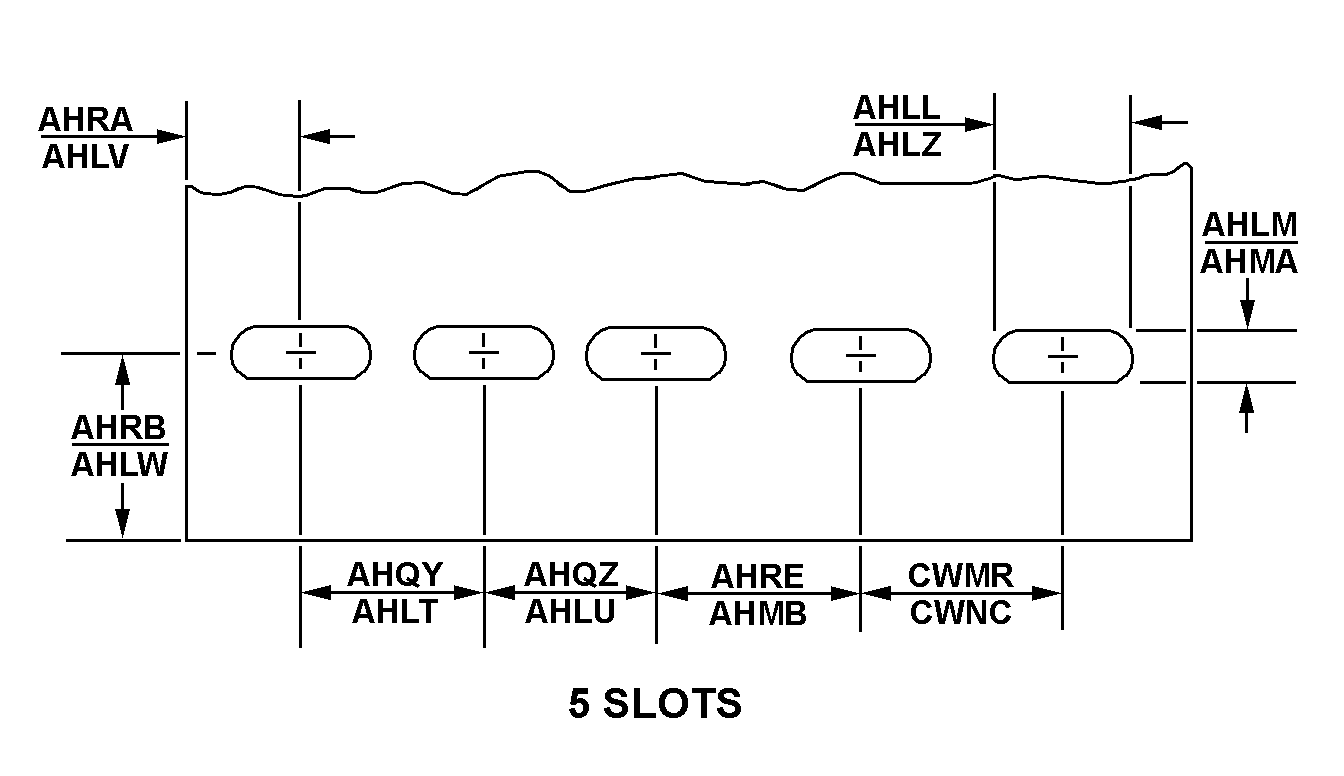

5 SLOTS
SQUARE
CUT OUT
ONE HOLE
5 SLOTS
ANGLE
Cross Reference | NSN 5340-01-279-9155
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 625-7926-001 | 13499 | ROCKWELL COLLINS, INC.DBA GOVERNMENT SYSTEMS |
Technical Data | NSN 5340-01-279-9155
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5052 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 8 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CHROMATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | ANGLE |
| FIRST LEG LENGTH | 2.380 INCHES MINIMUM AND 3.380 INCHES MAXIMUM |
| SECOND LEG LENGTH | 1.360 INCHES MINIMUM AND 1.400 INCHES MAXIMUM |
| FIRST LEG THICKNESS | 0.182 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| SECOND LEG THICKNESS | 0.182 INCHES MINIMUM AND 0.198 INCHES MAXIMUM |
| FIRST LEG ANGLE | 90.0 DEGREES NOMINAL |
| FIRST LEG STYLE | CUT OUT |
| FIRST LEG WIDTH | 7.734 INCHES MINIMUM AND 7.770 INCHES MAXIMUM |
| FIRST LEG CUTOUT LENGTH | 2.480 INCHES MINIMUM AND 2.520 INCHES MAXIMUM |
| FIRST LEG CUTOUT WIDTH | 3.980 INCHES MINIMUM AND 4.020 INCHES MAXIMUM |
| SECOND LEG WIDTH | 7.734 INCHES MINIMUM AND 7.770 INCHES MAXIMUM |
| FIRST LEG HOLE ARRANGEMENT STYLE | ONE HOLE |
| FIRST LEG HOLE DIAMETER | 0.384 INCHES MINIMUM AND 0.396 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN FIRST AND SECOND HOLE CENTERS ALONG WIDTH | 1.992 INCHES MINIMUM AND 2.008 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN SECOND AND THIRD HOLE CENTERS ALONG WIDTH | 2.480 INCHES MINIMUM AND 2.520 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| FIRST LEG DISTANCE BETWEEN THIRD AND FOURTH HOLE CENTERS ALONG WIDTH | 1.992 INCHES MINIMUM AND 2.008 INCHES MAXIMUM |
| FIRST LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.480 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| FIRST LEG SLOT LENGTH | 0.636 INCHES MINIMUM AND 0.652 INCHES MAXIMUM |
| FIRST LEG SLOT WIDTH | 0.256 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG WIDTH | 0.610 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| SECOND LEG DISTANCE FROM EDGE TO HOLE CENTER ALONG LENGTH | 0.360 INCHES MINIMUM AND 0.400 INCHES MAXIMUM |
| SECOND LEG RELATIONSHIP TO FIRST LEG | NOT IDENTICAL |
| SECOND LEG STYLE | SQUARE |
| SECOND LEG HOLE ARRANGEMENT STYLE | 5 SLOTS |
| MOUNTING HOLE TYPE | PLAIN |
