NSN 5340-01-284-4846
Part Details | SNAP HOOK
5340-01-284-4846 A metal fastening device one or both ends of which are hook shaped with a closing or locking device over the throat opening which is held closed by spring action. If hook shaped on one end only the opposite end is provided with a fixed, loose, or swivel loop or opening for connecting to another item. Excludes cargo hooks with safety devices.
Alternate Parts: 3933T14, 3827880C1L, 5340-01-284-4846, 01-284-4846, 5340012844846, 012844846
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | AUG 24, 1988 | 01-284-4846 | 16954 ( SNAP HOOK ) |
REFERENCE DRAWINGS & PICTURES

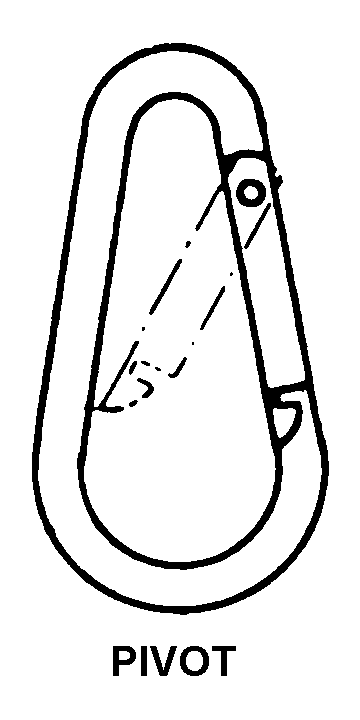

PIVOT
Cross Reference | NSN 5340-01-284-4846
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3933T14 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| 3827880C1L | 338X5 | NAVISTAR DEFENSE LLC |
Technical Data | NSN 5340-01-284-4846
| Characteristic | Specifications |
|---|---|
| HOOK STYLE DESIGNATOR | PIVOT |
| DESIGN TYPE | SWIVEL |
| HOOK MATERIAL | STEEL |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| RUBBER COVERED FEATURE | NOT INCLUDED |
| UNATTACHED RING | NOT INCLUDED |
