NSN 5365-00-737-2695
Part Details | SLEEVE SPACER
5365-00-737-2695 A tubular shaped item with a round or hexagon peripheral shape having two flat bearing surfaces perpendicular to the axis of the centrally located hole. It is designed to maintain a predetermined distance between assembled parts. The item may be with or without flange(s) of any peripheral shape. The overall length must exceed 25 percent of the outside diameter or distance across peripheral flats of the body. (When the length, outside diameter, and/or distance across peripheral flats are designed as a tolerance, the maximum dimension will be used to determine compliance). For items having other than a round or hexagon peripheral shape, see SPACER, PLATE. Excludes items with lubricating features, see BEARING, SLEEVE and BUSHING, SLEEVE. See also BUSHING, TAPERED; SPACER, RING; WASHER, FLAT; and WASHER, (as modified).
Alternate Parts: 513391, 7372695, 5365-00-737-2695, 00-737-2695, 5365007372695, 007372695
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | JAN 01, 1963 | 00-737-2695 | 13207 ( SPACER, SLEEVE ) |
REFERENCE DRAWINGS & PICTURES

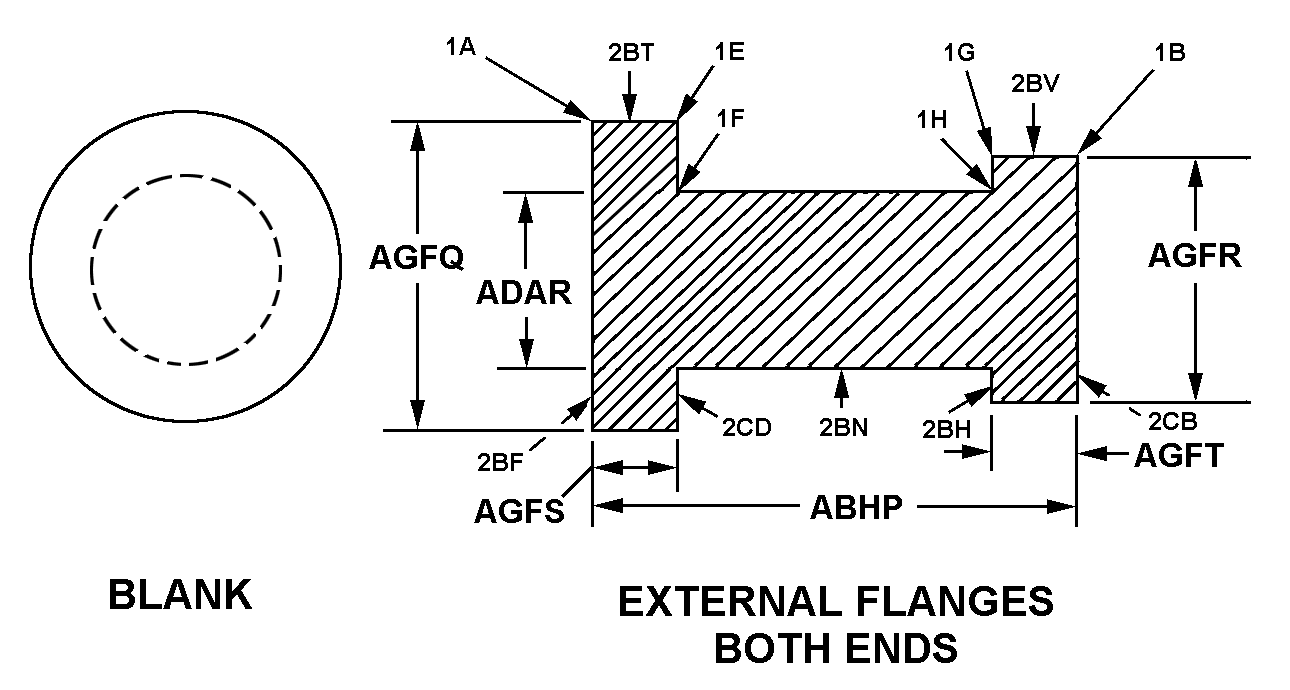

BLANK, EXTERNAL FLANGES BOTH ENDS
Cross Reference | NSN 5365-00-737-2695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 513391 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
| 7372695 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5365-00-737-2695
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | BLANK, EXTERNAL FLANGES BOTH ENDS |
| OVERALL LENGTH | 3.1380 INCHES MINIMUM AND 3.1440 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 0.8730 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 0.8770 INCHES MINIMUM AND 0.8790 INCHES MAXIMUM |
| LEFT FLANGE OUTSIDE DIAMETER | 0.8890 INCHES MINIMUM AND 0.8910 INCHES MAXIMUM |
| RIGHT FLANGE OUTSIDE DIAMETER | 0.8890 INCHES MINIMUM AND 0.8910 INCHES MAXIMUM |
| END ITEM IDENTIFICATION | 2350-00-796-8000;GUN SP |
