NSN 5910-01-462-0370
Part Details | CERAMIC DIELECTRIC FIXED CAPACITOR
5910-01-462-0370 A capacitor, whose capacitance value cannot be adjusted or varied, having a ceramic dielectric. It may be a single unit, or consist of two or more fixed units which cannot be separated.
Alternate Parts: 100B681JMS50X, ATC100B681JMS050, 5910-01-462-0370, 01-462-0370, 5910014620370, 014620370
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 19, 1999 | 01-462-0370 | 00007 ( CAPACITOR, FIXED, CERAMIC DIELECTRIC ) |
REFERENCE DRAWINGS & PICTURES
W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES

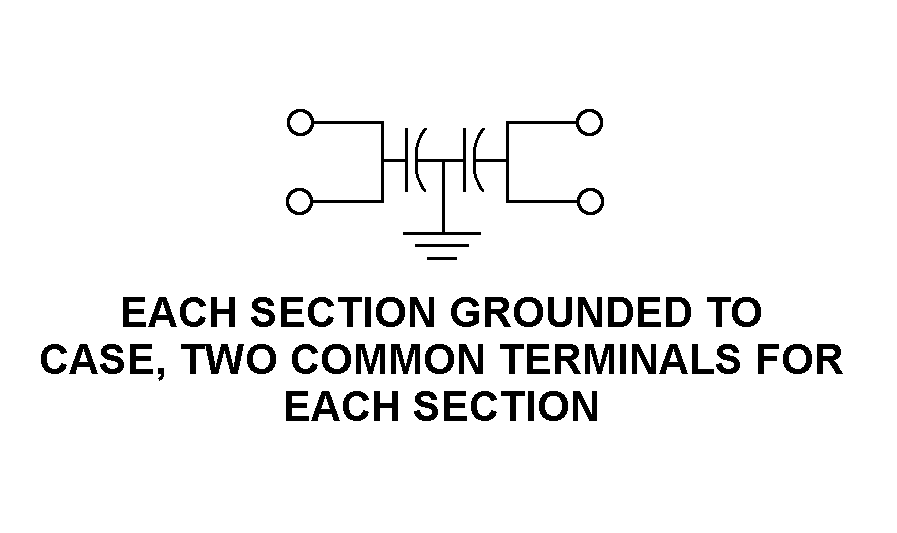

EACH SECTION GROUNDED TO CASE, TWO COMMON TERMINALS FOR EACH SECTION
Cross Reference | NSN 5910-01-462-0370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100B681JMS50X | 29990 | AMERICAN TECHNICAL CERAMICS CORPDBA ATC |
| ATC100B681JMS050 | 29990 | AMERICAN TECHNICAL CERAMICS CORPDBA ATC |
Technical Data | NSN 5910-01-462-0370
| Characteristic | Specifications |
|---|---|
| CAPACITANCE VALUE PER SECTION | 1000.000 PICOFARADS ALL SECTIONS |
| TOLERANCE RANGE PER SECTION | -0.10 TO +1000.00 MICROFARADS SINGLE SECTION |
| NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION | 500.0 DC ALL SECTIONS |
| NONDERATED OPERATING TEMP | -55.0 DEG CELSIUS MINIMUM AND 125.0 DEG CELSIUS MAXIMUM |
| BODY STYLE | W/MTG TABS/FLANGES, TERMINALS ON OPPOSITE SURFACES |
| BODY LENGTH | 0.720 INCHES NOMINAL |
| BODY WIDTH | 0.127 INCHES NOMINAL |
| BODY HEIGHT | 0.098 INCHES NOMINAL |
| SCHEMATIC DIAGRAM DESIGNATOR | EACH SECTION GROUNDED TO CASE, TWO COMMON TERMINALS FOR EACH SECTION |
| TERMINAL TYPE AND QUANTITY | 2 SOLDER STUD |
| RELIABILITY INDICATOR | ESTABLISHED |
