NSN 5975-01-533-9901
Part Details | STUFFING TUBE
5975-01-533-9901 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Alternate Parts: M19622404MOD34, M19622/4-04MOD3/4, 68780991, 6878099-1, 4706878099, 470-6878099, 5975-01-533-9901, 01-533-9901, 5975015339901, 015339901
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 04, 2005 | 01-533-9901 | 00882 ( STUFFING TUBE ) |

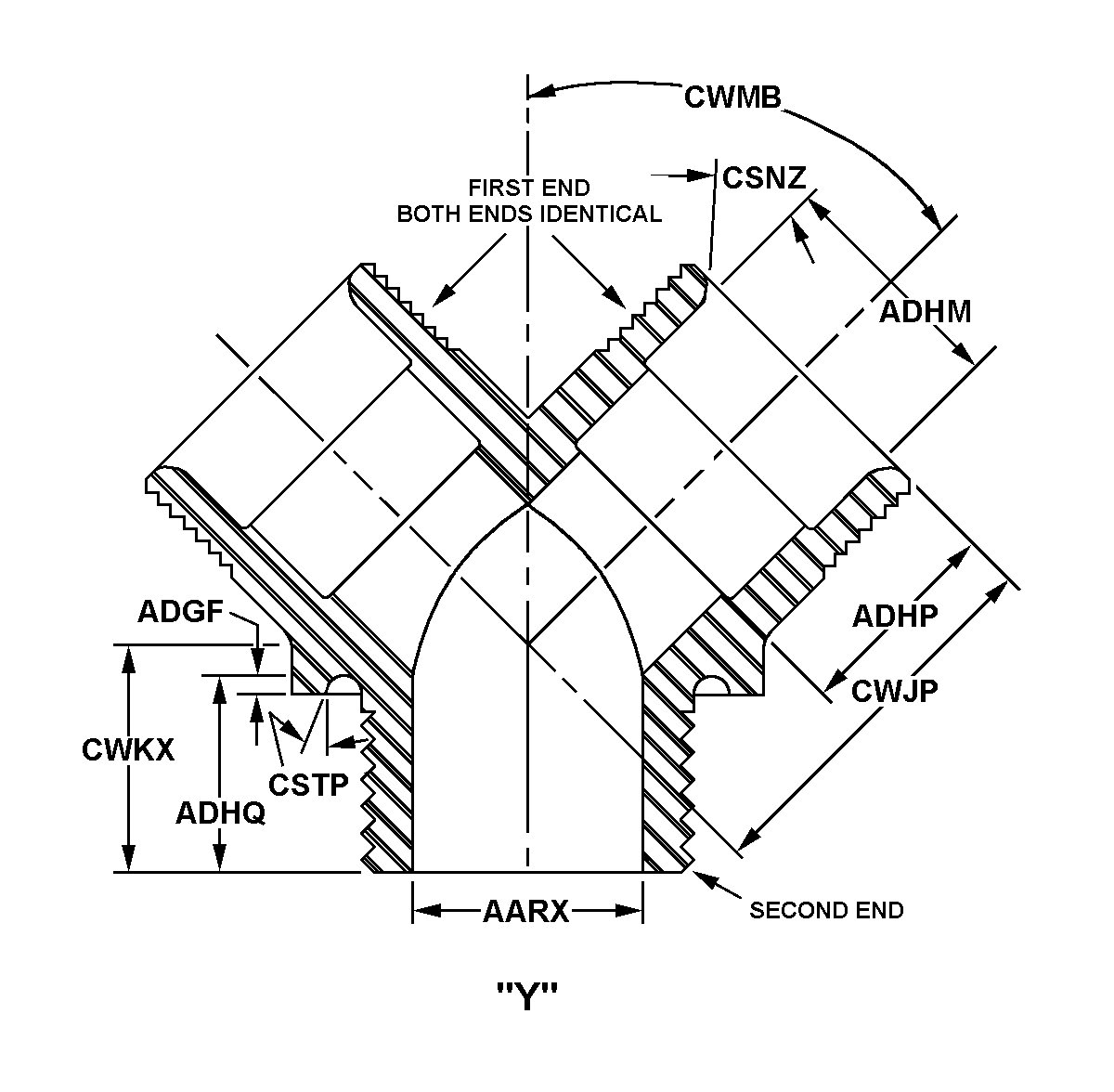

REFERENCE DRAWINGS & PICTURES
Y
Cross Reference | NSN 5975-01-533-9901
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622/4-04MOD3/4 | 99820 | DORN EQUIPMENT CORP |
| 6878099-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| 470-6878099 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5975-01-533-9901
| Characteristic | Specifications |
|---|---|
| SIZE | 0.750 INCHES NOMINAL |
| STYLE DESIGNATOR | Y |
| FIRST END Y ANGLE | 40.0 DEGREES NOMINAL |
| FURNISHED ITEMS | CAP AND O-RING AND ADAPTER |
| SPECIAL FEATURES | END ITEM - AN/SLQ-25A EC-4; ITEM IS Y-TYPE NYLON 4T W/3/4 NPT; CONFORMS TO MIL-S-19622/4-04 4T EXCEPT FOR THREADS AND 2.45 BY 2.30 INCH OVERALL DIMS |
