NSN 5998-01-112-0984
Part Details | ELECTRICAL CARD EXTRACTOR
5998-01-112-0984 A device specifically designed to remove CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD from their installed position.
Alternate Parts: 24107, 24-107, 06003, 06-003, 5254528, 5254-528, 5998-01-112-0984, 01-112-0984, 5998011120984, 011120984
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 26, 1981 | 01-112-0984 | 31929 ( EXTRACTOR, ELECTRICAL CARD ) |

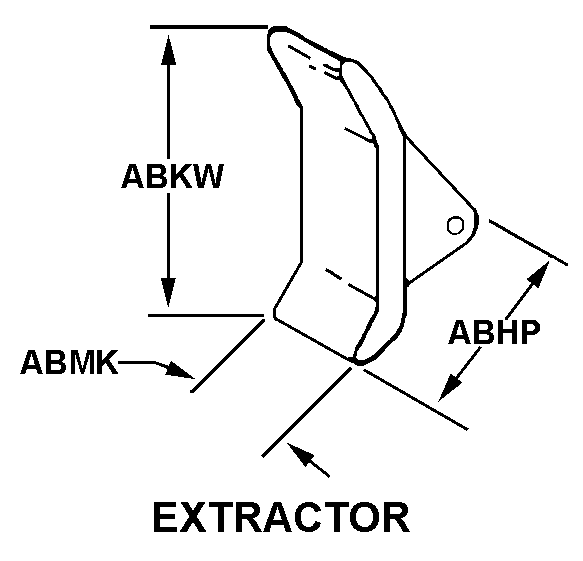

REFERENCE DRAWINGS & PICTURES
EXTRACTOR
Cross Reference | NSN 5998-01-112-0984
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24-107 | 58764 | KINETIC DATA CORP |
| 06-003 | 58764 | KINETIC DATA CORP |
| 5254-528 | 05869 | RAYTHEON COMPANYDBA RAYTHEON |
Technical Data | NSN 5998-01-112-0984
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRACTOR |
| OVERALL LENGTH | 1.120 INCHES NOMINAL |
| OVERALL HEIGHT | 0.380 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| COLOR | WHITE |
| MATERIAL | PLASTIC POLYAMIDE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693A MIL SPEC SINGLE MATERIAL RESPONSE |
