NSN 5998-01-124-9697
Part Details | ELECTRICAL CARD EXTRACTOR
5998-01-124-9697 A device specifically designed to remove CIRCUIT CARD ASSEMBLY; or PRINTED CIRCUIT BOARD from their installed position.
Alternate Parts: SI9604, SI-9604, SMC787928, SM-C-787928, SMC787928, SM-C-787928, SMC787928, SM-C-787928, SMC787928, SM-C-787928, 5998-01-124-9697, 01-124-9697, 5998011249697, 011249697
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 17, 1982 | 01-124-9697 | 31929 ( EXTRACTOR, ELECTRICAL CARD ) |

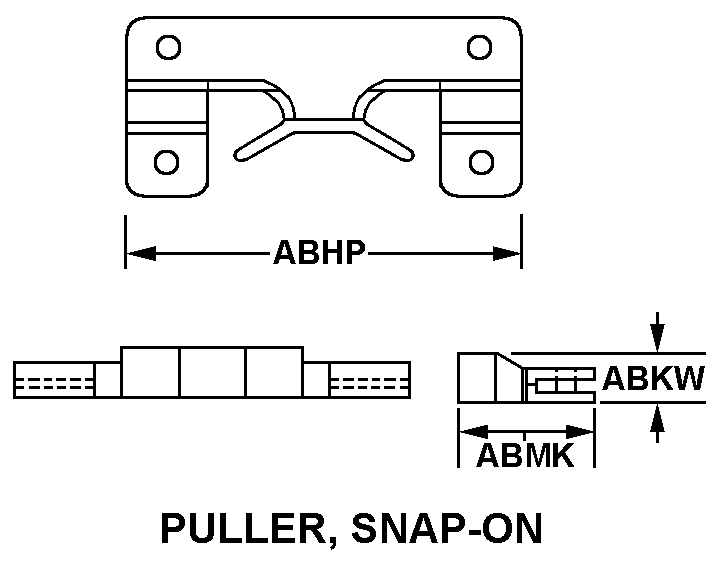

REFERENCE DRAWINGS & PICTURES
PULLER, SNAP-ON
Cross Reference | NSN 5998-01-124-9697
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SI-9604 | 55097 | SHILOH INDUSTRIES, INC. |
| SM-C-787928 | 63592 | STARWIN INDUSTRIES, INC. |
| SM-C-787928 | 80063 | US ARMY COMMUNICATIONS &ELECTRONICS MATERIEL READINESS |
| SM-C-787928 | 04YE2 | VALCORE MANUFACTURING LLC |
| SM-C-787928 | 20723 | VALCORE MANUFACTURING LLCDBA USE CAGE CODE 04YE2 FOR |
Technical Data | NSN 5998-01-124-9697
| Characteristic | Specifications |
|---|---|
| BODY STYLE | PULLER, SNAP-ON |
| OVERALL LENGTH | 5.000 INCHES NOMINAL |
| OVERALL HEIGHT | 0.070 INCHES NOMINAL |
| OVERALL WIDTH | 3.900 INCHES NOMINAL |
| MATERIAL | PLASTIC |
