NSN 5999-01-501-3437
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-501-3437 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 8504847, 5999-01-501-3437, 01-501-3437, 5999015013437, 015013437
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 01, 2002 | 01-501-3437 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

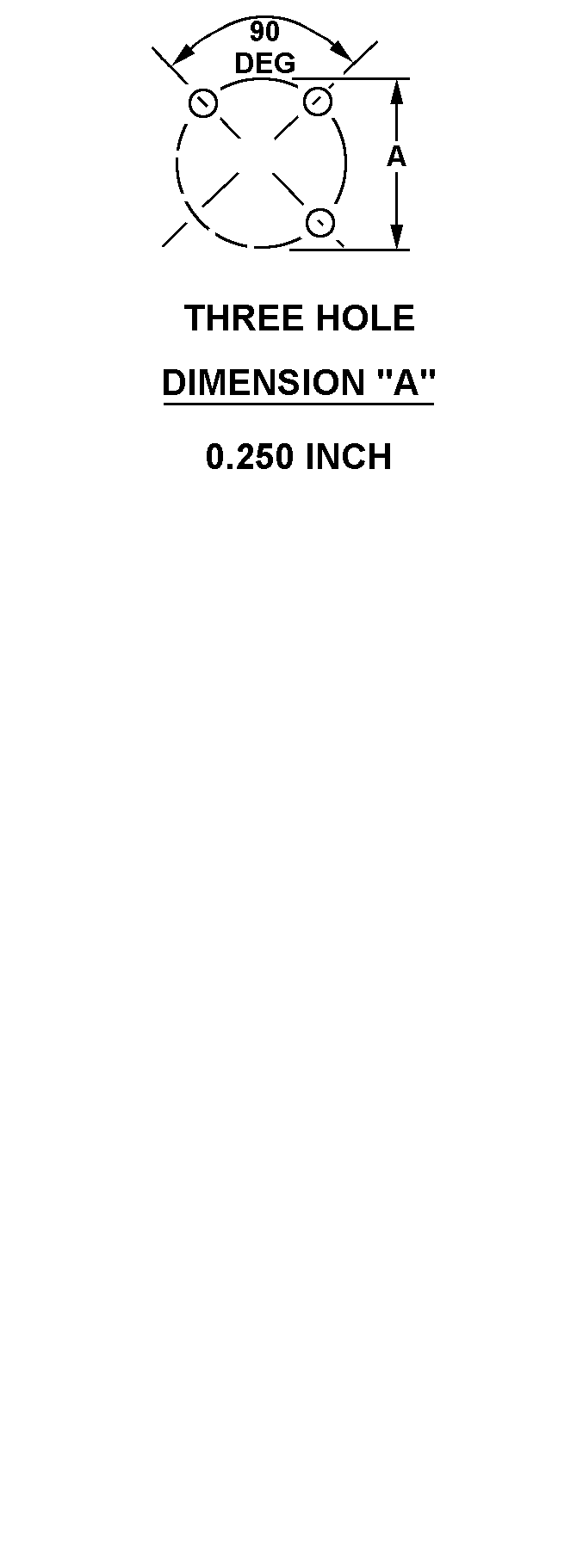

THREE HOLE - 0.250 INCH
Cross Reference | NSN 5999-01-501-3437
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8504847 | 07187 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5999-01-501-3437
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 0.730 INCHES NOMINAL |
| OVERALL HEIGHT | 0.280 INCHES NOMINAL |
| OVERALL WIDTH | 0.680 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-250 TO 11, 6061 T651 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TYPE III, CLASS I (M692441) MIL SPEC SINGLE TREATMENT RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | THREE HOLE - 0.250 INCH |
| ACCOMMODATED DEVICE MOUNTING HOLE QUANTITY | 3 |
| END ITEM IDENTIFICATION | AIRCRAFT, EAGLE F-15 |
