NSN 5999-01-540-0284
Part Details | ELECTRONIC SHIELDING GASKET
5999-01-540-0284 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: AG36900002, AG369000-02, 5999-01-540-0284, 01-540-0284, 5999015400284, 015400284
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 08, 2006 | 01-540-0284 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES
METAL AND NONMETALLIC MATERIALS

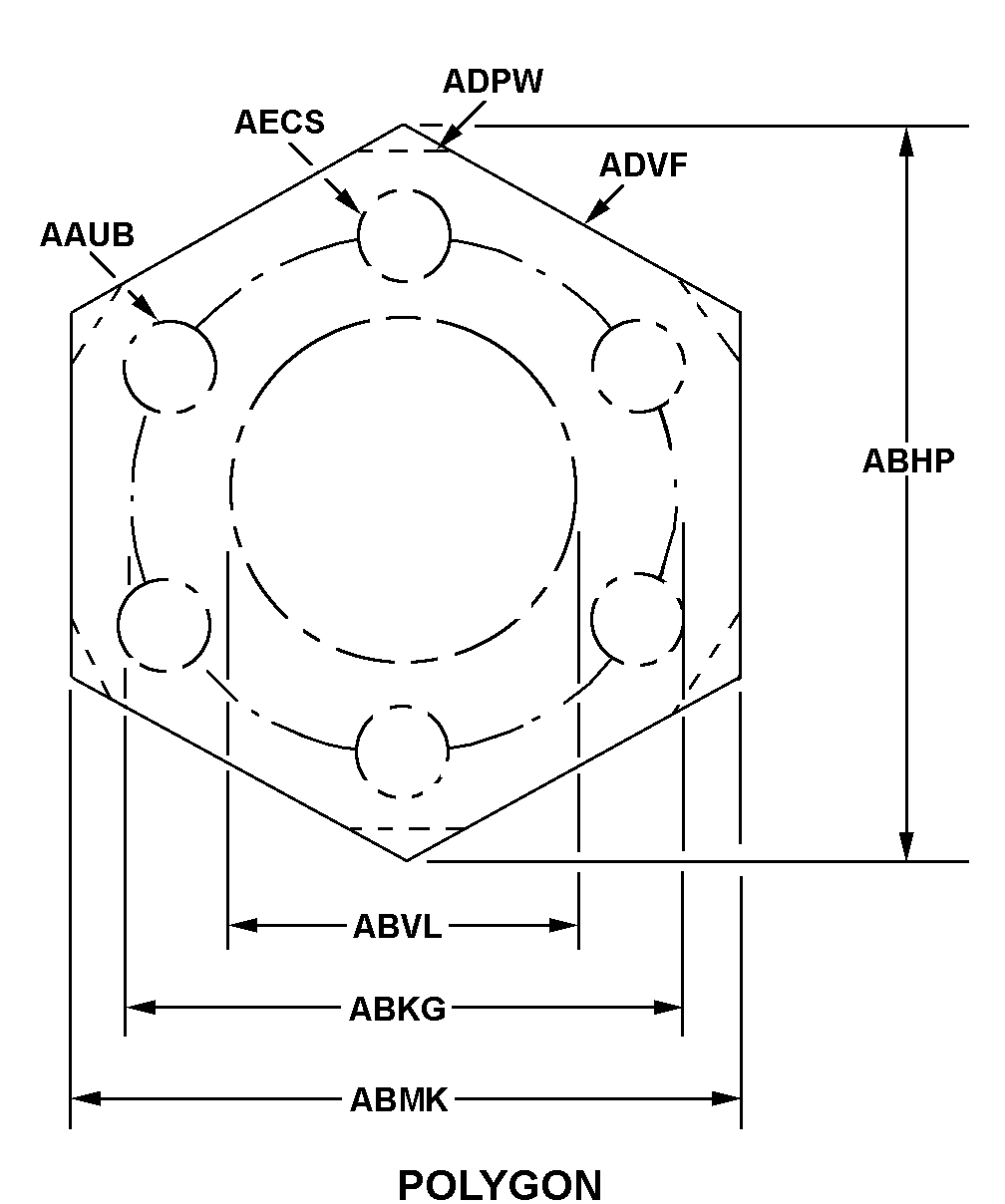

POLYGON
Cross Reference | NSN 5999-01-540-0284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AG369000-02 | 1NPE1 | AVIATION DEVICES AND ELECTRONICCOMPONENTS, L.L.C. |
Technical Data | NSN 5999-01-540-0284
| Characteristic | Specifications |
|---|---|
| ENVIRONMENTAL PROTECTION MATERIAL LOCATION | THROUGHOUT RF SHIELDING GASKET |
| CROSS-SECTIONAL SHAPE STYLE | 9 METAL AND NONMETALLIC MATERIALS |
| CROSS-SECTIONAL THICKNESS | 0.055 INCHES NOMINAL |
| STYLE DESIGNATOR | POLYGON |
| HOLE DIAMETER | 1.000 INCHES NOMINAL |
| OVERALL LENGTH | 5.250 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| PERIPHERAL FLAT QUANTITY | 6 |
| BOLT HOLE QUANTITY | 6 |
| END ITEM IDENTIFICATION | C-17A AIRCRAFT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET - FM WHIP ANTENNA |
