NSN 5999-01-563-7527
Part Details | ELECTRICAL SHIELD PLATE
5999-01-563-7527 A metallic or metallic coated item which is rigid or semirigid, flat, and generally smooth. Its thickness is small in comparison to both its length and width, and is designed to prevent or reduce stray electro-magnetic and/or electrostatic fields between components or items. It may be used as a mechanical guard. Excludes PLATE (as otherwise modified); SHIELD (as modified); and SPACER, PLATE.
Alternate Parts: 81969951, 8196995-1, 5999-01-563-7527, 01-563-7527, 5999015637527, 015637527
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAY 21, 2008 | 01-563-7527 | 02463 ( PLATE, ELECTRICAL SHIELD ) |
REFERENCE DRAWINGS & PICTURES

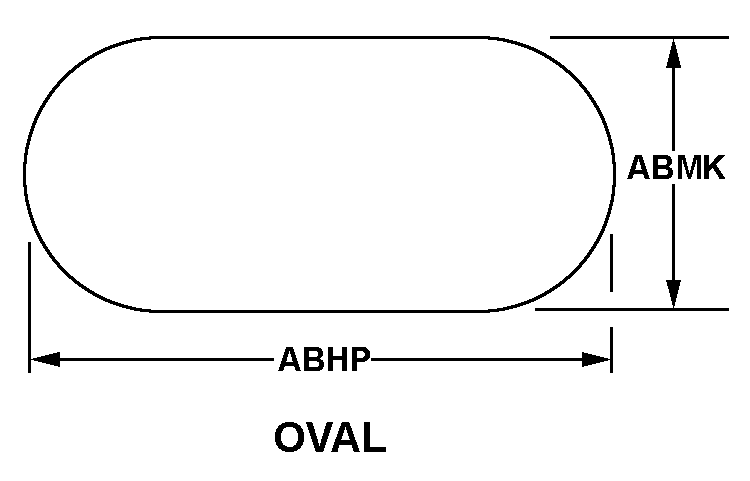

OVAL
Cross Reference | NSN 5999-01-563-7527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8196995-1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 5999-01-563-7527
| Characteristic | Specifications |
|---|---|
| BODY STYLE | OVAL |
| OVERALL LENGTH | 3.950 INCHES NOMINAL |
| OVERALL WIDTH | 2.250 INCHES NOMINAL |
| MATERIAL | GLASS |
| SURFACE TREATMENT | OXIDE FILM |
| SPECIAL FEATURES | INDIUM TIN OXIDE DEPOSITION COATING RATED AT 8 OHMS PER SQUARE OR BETTER; LIGHT TRANSMISSION GREATER THAN 88 PERCENT AT 550 NANOMETERS ONE SIDE ONLY; 4MM NOMINAL THICKNESS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | (INAVY) OBROUND EMI LENS |
