NSN 5999-01-571-1324
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-571-1324 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 20080219 ITEM 27, 3PK1.2, 3PK-1.2, 5999-01-571-1324, 01-571-1324, 5999015711324, 015711324
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 26, 2009 | 01-571-1324 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

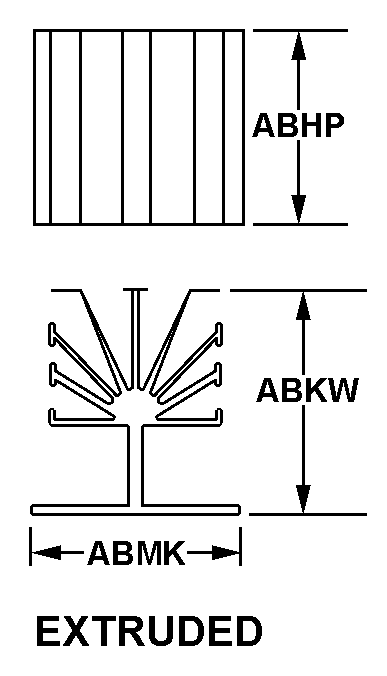

EXTRUDED
Cross Reference | NSN 5999-01-571-1324
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 20080219 ITEM 27 | 3U458 | GPS TECHNOLOGIES INCFEDERAL SYSTEMS GROUP |
| 3PK-1.2 | 3WKN5 | POWER-IO, INC.DBA POWER-IO |
Technical Data | NSN 5999-01-571-1324
| Characteristic | Specifications |
|---|---|
| BODY STYLE | EXTRUDED |
| OVERALL LENGTH | 11.875 INCHES NOMINAL |
| OVERALL HEIGHT | 3.375 INCHES NOMINAL |
| OVERALL WIDTH | 2.360 INCHES NOMINAL |
| MATERIAL | ALUMINUM |
| END ITEM IDENTIFICATION | TSMS LOOP POWER CONTROL BOX ASSEMBLY, GDEB9000. |
