NSN 5999-01-586-2789
Part Details | ELECTRONIC SHIELDING GASKET
5999-01-586-2789 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: AG52700002, AG527000-02, 5999-01-586-2789, 01-586-2789, 5999015862789, 015862789
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 22, 2010 | 01-586-2789 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES

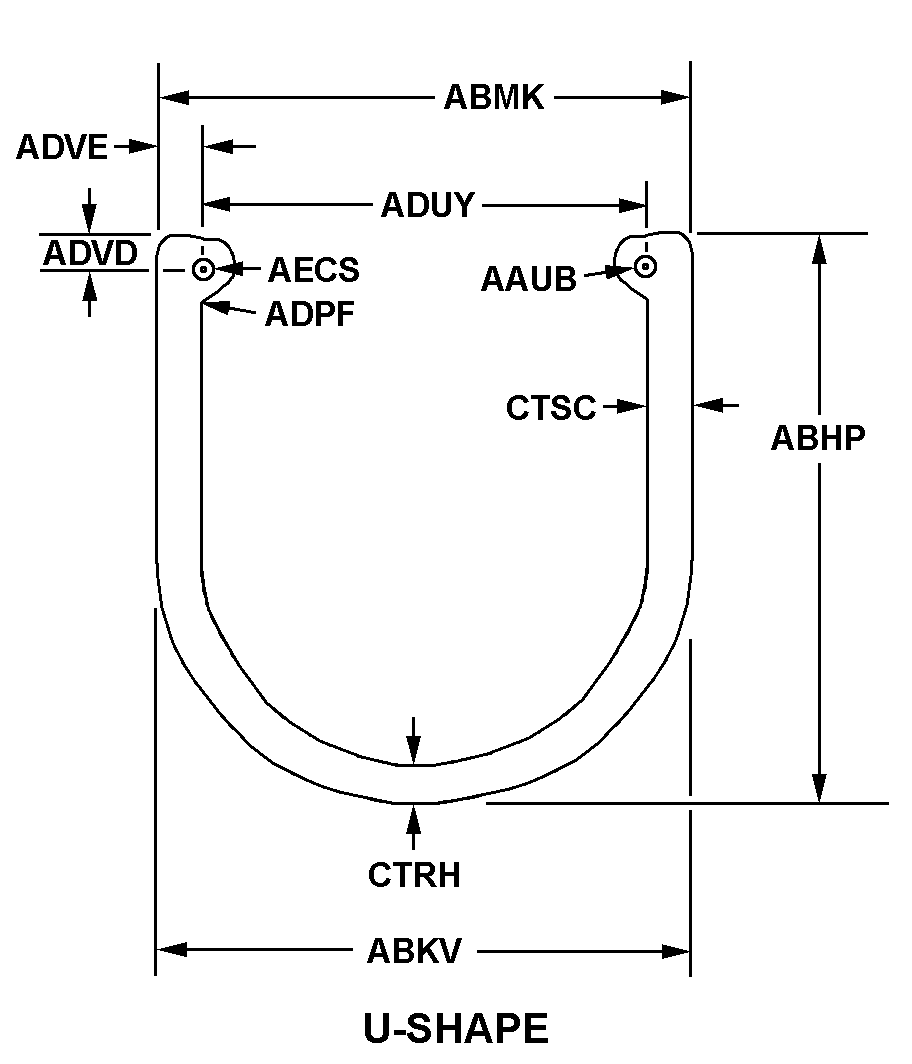

U-SHAPE
Cross Reference | NSN 5999-01-586-2789
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AG527000-02 | 1NPE1 | AVIATION DEVICES AND ELECTRONICCOMPONENTS, L.L.C. |
Technical Data | NSN 5999-01-586-2789
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | U-SHAPE |
| OVERALL LENGTH | 11.370 INCHES NOMINAL |
| OVERALL WIDTH | 7.650 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL:ELASTOMERIC SEALANT WITH ALUMINUM MESH IAW AV-DEC MATERIAL SPECIFICATION MS52678 |
| END ITEM IDENTIFICATION | AH-64A |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET-LASER SENSOR UNIT |
