NSN 5999-01-612-7935
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-612-7935 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 105E7404P1, 5999-01-612-7935, 01-612-7935, 5999016127935, 016127935
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 22, 2012 | 01-612-7935 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES
RECTANGULAR

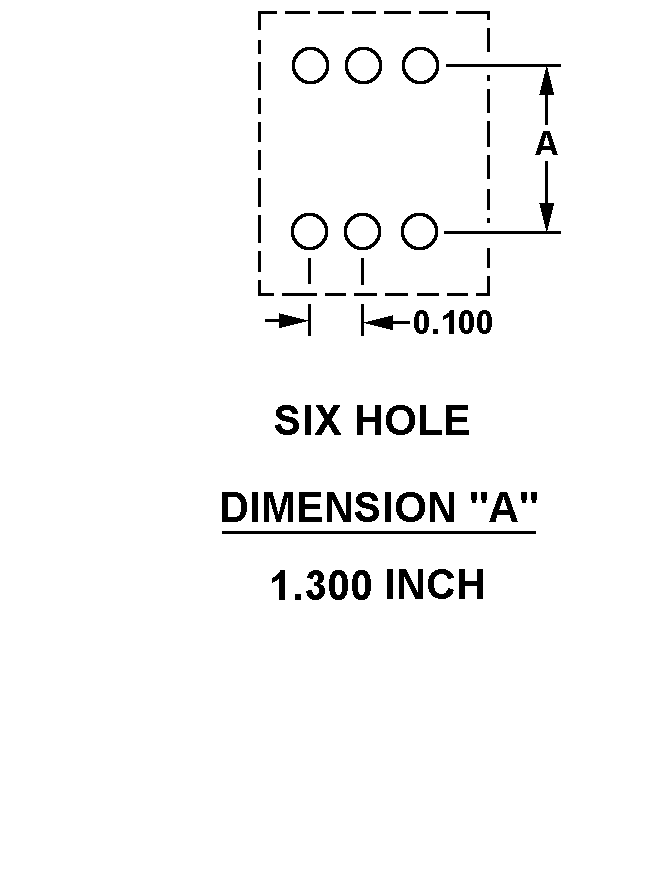

SIX HOLE - 1.300 INCH
Cross Reference | NSN 5999-01-612-7935
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105E7404P1 | 89954 | BAE SYSTEMS CONTROLS INC. |
Technical Data | NSN 5999-01-612-7935
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGULAR |
| OVERALL LENGTH | 8.300 INCHES NOMINAL |
| OVERALL HEIGHT | 0.313 INCHES NOMINAL |
| OVERALL WIDTH | 6.135 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AQQ-A-250 TO 11$A QQ-A-225 TO 8$A QQ-A-204 TO 8 1ST MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625, TYPE III, CLASS 2, DYED BLACK AND SEALED MIL SPEC SINGLE TREATMENT RESPONSE |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | SIX HOLE - 1.300 INCH |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | HEATSINK, A/D DISCREET I/O |
