NSN 5999-01-617-7881
Part Details | ELECTRICAL SHIELD PLATE
5999-01-617-7881 A metallic or metallic coated item which is rigid or semirigid, flat, and generally smooth. Its thickness is small in comparison to both its length and width, and is designed to prevent or reduce stray electro-magnetic and/or electrostatic fields between components or items. It may be used as a mechanical guard. Excludes PLATE (as otherwise modified); SHIELD (as modified); and SPACER, PLATE.
Alternate Parts: 80A5022A04241, 80A5022A0424-1, 80A5022A04241, 80A5022A0424-1, 5999-01-617-7881, 01-617-7881, 5999016177881, 016177881
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 03, 2013 | 01-617-7881 | 02463 ( PLATE, ELECTRICAL SHIELD ) |
REFERENCE DRAWINGS & PICTURES
RECTANGLE, SHARP CORNERS

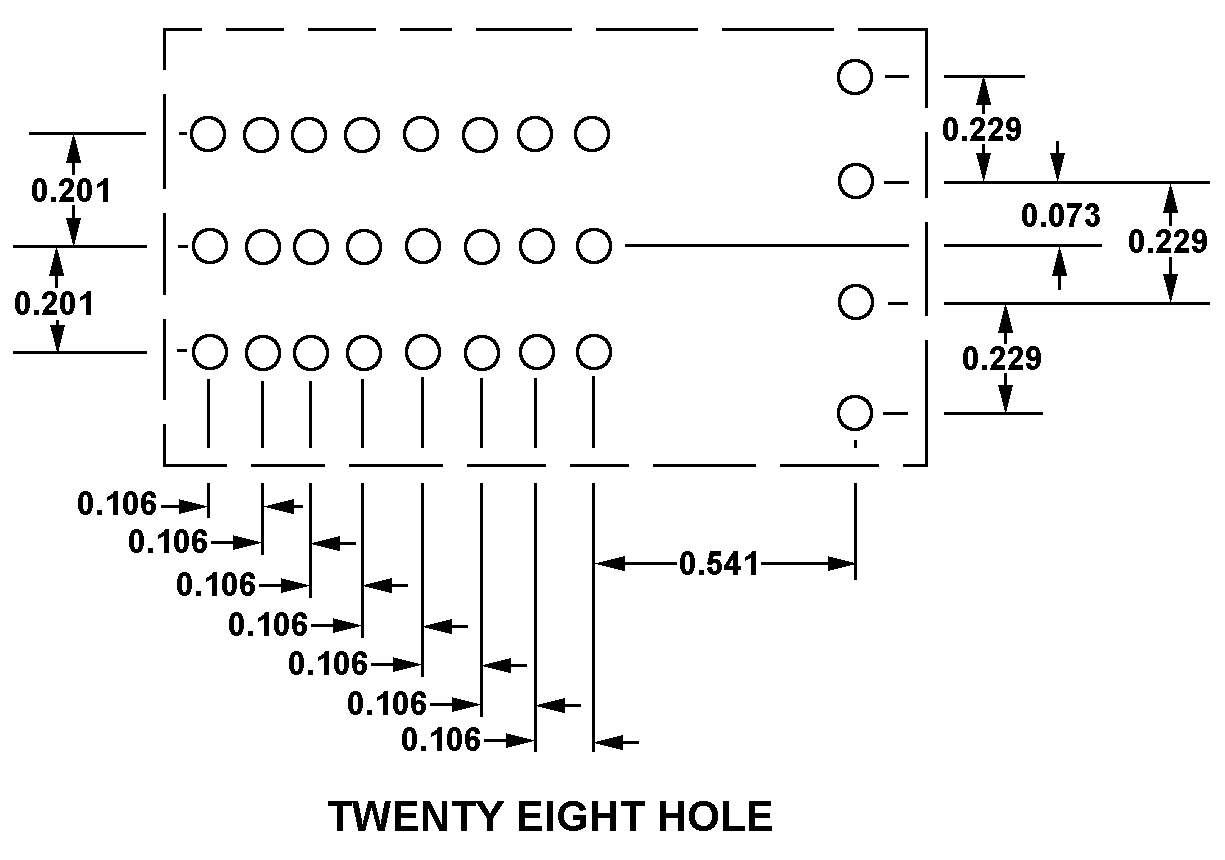

TWENTY EIGHT HOLE
Cross Reference | NSN 5999-01-617-7881
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 80A5022A0424-1 | 0PL74 | MAJR PRODUCTS CORPORATION |
| 80A5022A0424-1 | 01365 | MARINE CORPS LOGISTICS COMMANDTECHNICAL DATA REPOSITORY |
Technical Data | NSN 5999-01-617-7881
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RECTANGLE, SHARP CORNERS |
| OVERALL LENGTH | 15.5 INCHES NOMINAL |
| OVERALL WIDTH | 15.5 INCHES NOMINAL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-STD-100 MIL STD ALL MATERIAL RESPONSES |
| ACCOMMODATED DEVICE MOUNTING HOLE PATTERN STYLE | TWENTY EIGHT HOLE |
| FEATURES PROVIDED | GASKET |
| END ITEM IDENTIFICATION | 5411-01-304-6121 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | SHIELDING GASKET,ELECTRONIC |
