NSN 5999-01-619-7777
Part Details | ELECTRONIC SHIELDING GASKET
5999-01-619-7777 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: PG76200098, PG762000-98, 1281V07240, 128-1V07-240, 5999-01-619-7777, 01-619-7777, 5999016197777, 016197777
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JUN 18, 2013 | 01-619-7777 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES

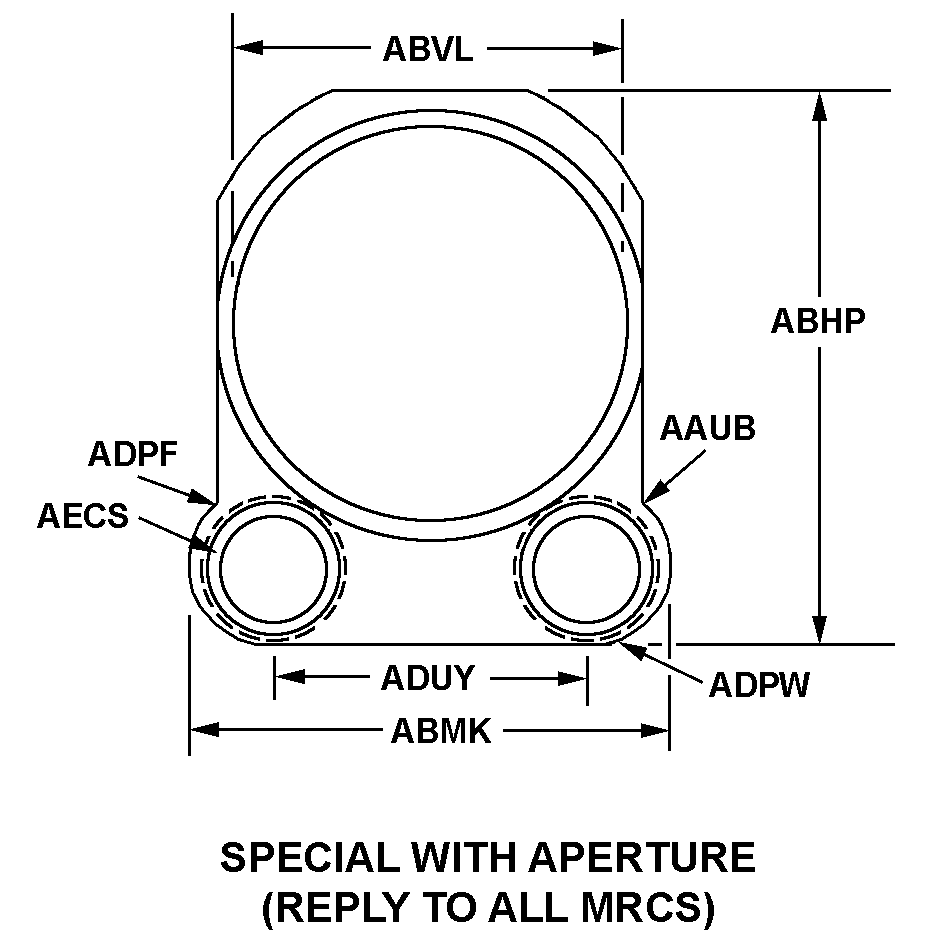

SPECIAL W/APERTURE
Cross Reference | NSN 5999-01-619-7777
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PG762000-98 | 1NPE1 | AVIATION DEVICES AND ELECTRONICCOMPONENTS, L.L.C. |
| 128-1V07-240 | 0EFD0 | ROCKWELL COLLINS, INC. |
Technical Data | NSN 5999-01-619-7777
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL THICKNESS | 0.30 INCHES NOMINAL |
| STYLE DESIGNATOR | SPECIAL W/APERTURE |
| OVERALL LENGTH | 11.0 INCHES NOMINAL |
| OVERALL WIDTH | 6.60 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL IS ELASTOMERIC SEALANT WITH ALUMINUM 40 MESH |
| END ITEM IDENTIFICATION | ACSU |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | GASKET, CONDUCTIVE,MOUNT ADAPTER PLATE |
