NSN 5999-01-627-2661
Part Details | ELECTRICAL-ELECTRONIC COMPONENT HEAT SINK
5999-01-627-2661 An item which is specifically designed to absorb, conduct or dissipate heat generated by an electrical and/or electronic component or an external source in order to prevent damage to the component. Do not use if a more specific name applies.
Alternate Parts: 5FG, 5FG, 5999-01-627-2661, 01-627-2661, 5999016272661, 016272661
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | APR 08, 2014 | 01-627-2661 | 61433 ( HEAT SINK, ELECTRICAL-ELECTRONIC COMPONENT ) |
REFERENCE DRAWINGS & PICTURES

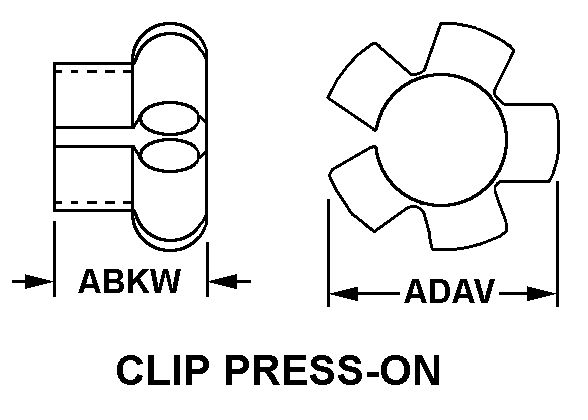

CLIP PRESS-ON
Cross Reference | NSN 5999-01-627-2661
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5FG | 30161 | AAVID THERMALLOY LLC |
| 5FG | 1N6F3 | AAVID THERMALLOY, LLC |
Technical Data | NSN 5999-01-627-2661
| Characteristic | Specifications |
|---|---|
| BODY STYLE | CLIP PRESS-ON |
| OVERALL HEIGHT | 12.7 MILLIMETERS NOMINAL |
| OVERALL DIAMETER | 16.0 MILLIMETERS NOMINAL |
| SURFACE TREATMENT | ANODIZE |
| SPECIAL FEATURES | 45.2 THERMAL RESISTANCE; BLACK IN COLOR; ROHS COMPLIANT |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | PUSH-ON HEAT SINK |
