NSN 5999-01-647-8095
Part Details | ELECTRONIC SHIELDING GASKET
5999-01-647-8095 A shaped metallic item designed to increase the effectiveness of radio frequency/electromagnetic interference, or a nonmetallic item containing a wire mesh, metal, or other electrically conductive particles designed to provide environmental sealing and radio frequency/electromagnetic interference shielding. For bulk items see WIRE MESH, KNITTED or GASKETING MATERIAL, CONDUCTIVE.
Alternate Parts: AG27600036, AG276000-36, 5999-01-647-8095, 01-647-8095, 5999016478095, 016478095
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | SEP 02, 2015 | 01-647-8095 | 20281 ( SHIELDING GASKET, ELECTRONIC ) |
REFERENCE DRAWINGS & PICTURES

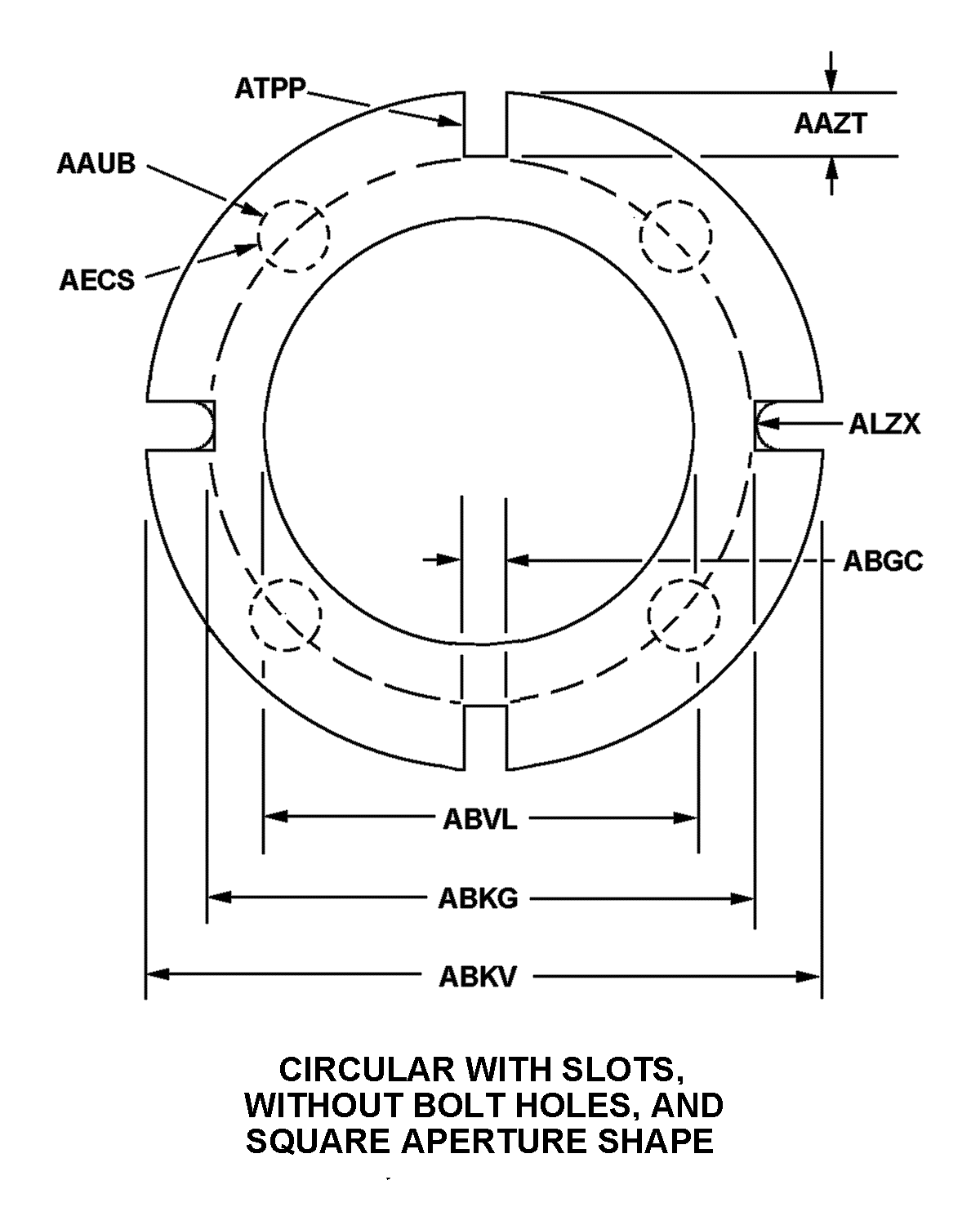

CIRCULAR WITH SLOTS, WITHOUT BOLT HOLES, WITH SQUARE APERTURE SHAPE
Cross Reference | NSN 5999-01-647-8095
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AG276000-36 | 1NPE1 | AVIATION DEVICES AND ELECTRONICCOMPONENTS, L.L.C. |
Technical Data | NSN 5999-01-647-8095
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CIRCULAR WITH SLOTS, WITHOUT BOLT HOLES, WITH SQUARE APERTURE SHAPE |
| SLOT DEPTH | 0.98 INCHES NOMINAL |
| SLOT WIDTH | 0.20 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.70 INCHES NOMINAL |
| APERTURE DIAMETER | 0.74 INCHES NOMINAL |
| SLOT QUANTITY | 6 |
