NSN 5930-00-179-3443
Part Details | BOX SWITCH
5930-00-179-3443 A switch designed with its actuator extending from the box which incloses the circuit elements. The door or cover of the box is designed so that it may be readily opened or removed, thus providing relatively easy access to the circuit elements. The item is commonly designated as a safety switch or entrance switch. May be fusible and may have interlocking device.
Alternate Parts: D222N, 10937022, 5930-00-179-3443, 00-179-3443, 5930001793443, 001793443
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 27, 1969 | 00-179-3443 | 02636 ( SWITCH, BOX ) |
REFERENCE DRAWINGS & PICTURES

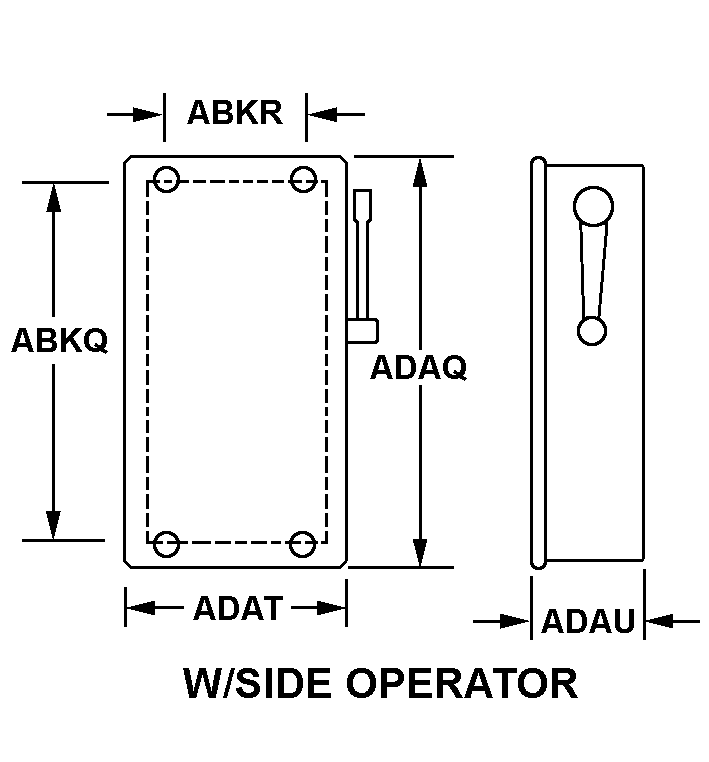

WITH SIDE OPERATOR
Cross Reference | NSN 5930-00-179-3443
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| D222N | 14280 | SCHNEIDER ELECTRIC USA, INC.DBA SCHNEIDER ELECTRIC |
| 10937022 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 5930-00-179-3443
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 240.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B2.000 AMPERES RESISTIVE |
| BODY STYLE | WITH SIDE OPERATOR |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 8.500 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 5.188 INCHES NOMINAL |
| BODY LENGTH | 11.000 INCHES NOMINAL |
| BODY WIDTH | 7.625 INCHES NOMINAL |
| BODY HEIGHT | 4.875 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 SCREW |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | DUSTPROOF |
| MOUNTING METHOD | PANEL |
