NSN 5930-00-258-4222
Part Details | MERCURY SWITCH
5930-00-258-4222 A switch in which a mercury pool is used to bridge fixed contacts when their inclosing sealed capsule is tilted. Do not use if switch has an actuator, such as lever, push button, toggle, and the like. See SWITCH (as modified). For items in which a contact may be moved into a mercury pool by a magnetic field, see SWITCH, REED.
Alternate Parts: 252KR0, 2-52KR0, K112J139PT1, AS408D0, 5930-00-258-4222, 00-258-4222, 5930002584222, 002584222
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1961 | 00-258-4222 | 00159 ( SWITCH, MERCURY ) |

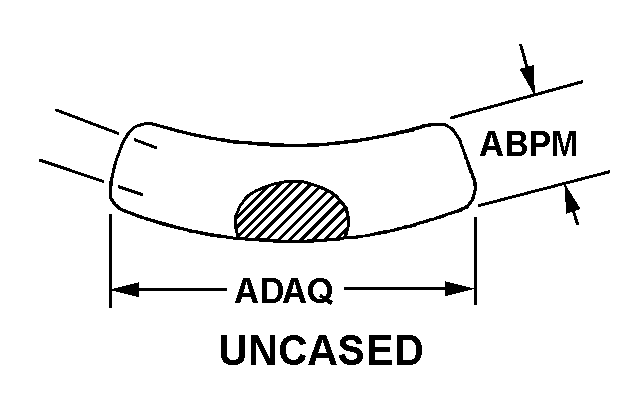

REFERENCE DRAWINGS & PICTURES
UNCASED
Cross Reference | NSN 5930-00-258-4222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2-52KR0 | 03497 | GENERAL ELECTRIC COOUTDOOR BREAKER BUSINESS SECTION |
| K112J139PT1 | 03497 | GENERAL ELECTRIC COOUTDOOR BREAKER BUSINESS SECTION |
| AS408D0 | 91929 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5930-00-258-4222
| Characteristic | Specifications |
|---|---|
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B500.000 MILLIAMPERES RESISTIVE |
| BODY STYLE | UNCASED |
| BODY DIAMETER | 0.349 INCHES NOMINAL |
| BODY LENGTH | 1.375 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 WIRE LEAD |
| SWITCH ACTUATION DIFFERENTIAL ANGLE | 12.0 DEGREES NOMINAL |
