NSN 5930-00-466-2181
Part Details | LOCK SWITCH
5930-00-466-2181 A switch which is externally actuated by a key designed to be inserted into a switch, or actuated by a predetermined combination dial setting(s). Excludes SWITCH, LOCK, IGNITION.
Alternate Parts: 491945S12N1, 49-1945S12N1, 2843577, 5930-00-466-2181, 00-466-2181, 5930004662181, 004662181
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 30, 1970 | 00-466-2181 | 00401 ( SWITCH, LOCK ) |

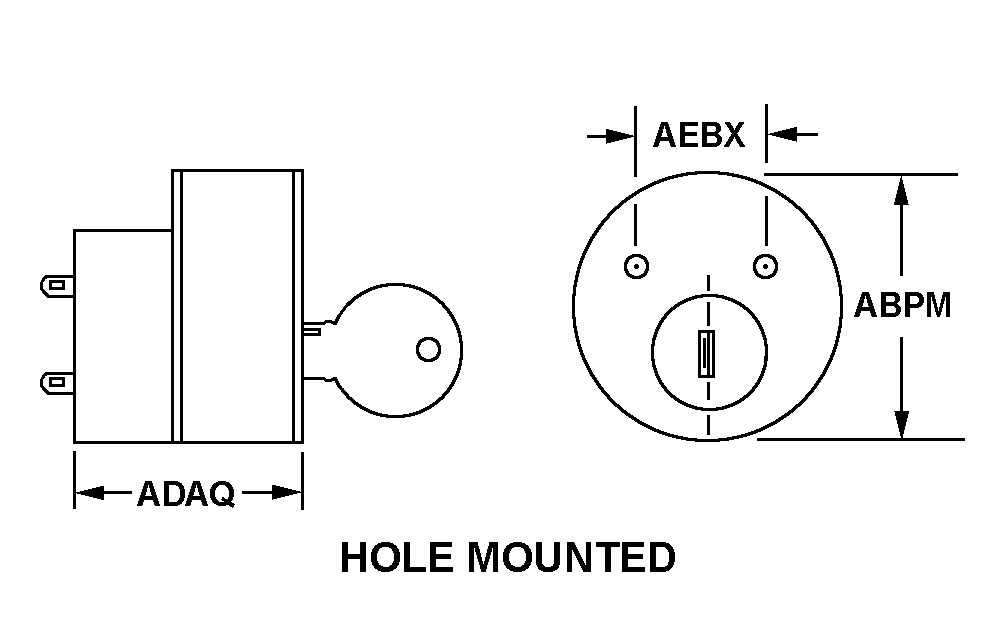

REFERENCE DRAWINGS & PICTURES
HOLE MOUNTED
Cross Reference | NSN 5930-00-466-2181
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 49-1945S12N1 | 91812 | JANCO CORPORATIONDBA ESTERLINE MASON |
| 2843577 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 5930-00-466-2181
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C5.000 AMPERES RESISTIVE AND C2.500 AMPERES INDUCTIVE AND B5.000 AMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| BODY DIAMETER | 1.500 INCHES NOMINAL |
| BODY LENGTH | 1.700 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO DIAMETER | 1.250 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
