NSN 5930-00-548-7982
Part Details | LEVER SWITCH
5930-00-548-7982 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Alternate Parts: 109601, 10960-1, A10960CHANGEA, 109601, 10960-1, A10960CHANGEA, 5930-00-548-7982, 00-548-7982, 5930005487982, 005487982
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-548-7982 | 00175 ( SWITCH, LEVER ) |
REFERENCE DRAWINGS & PICTURES

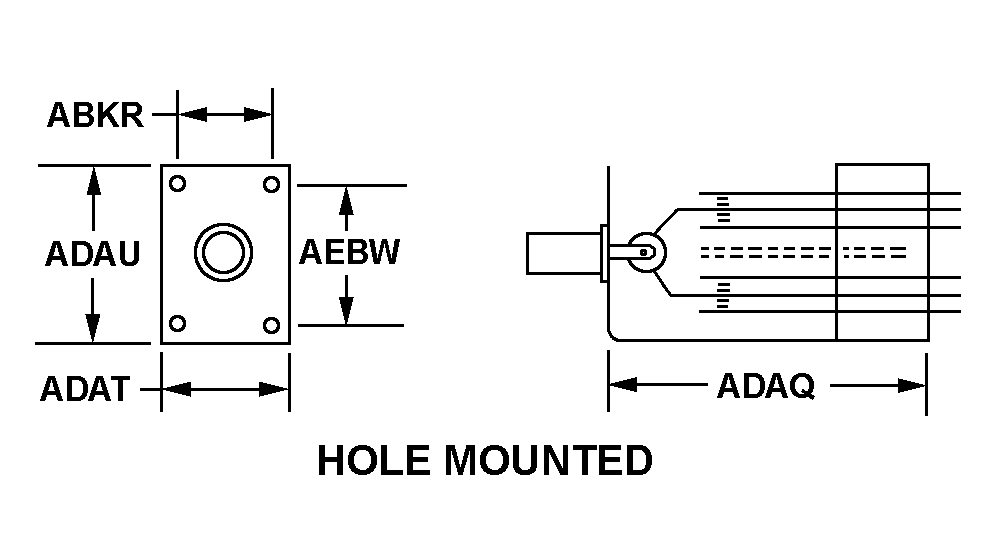

HOLE MOUNTED
ROUND
Cross Reference | NSN 5930-00-548-7982
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10960-1 | 06351 | MICROWAVE ENGINEERING CORPORATION |
| A10960CHANGEA | 06351 | MICROWAVE ENGINEERING CORPORATION |
| 10960-1 | 99380 | SIERRA NETWORKS INCSIERRACOM DIV |
| A10960CHANGEA | 99380 | SIERRA NETWORKS INCSIERRACOM DIV |
Technical Data | NSN 5930-00-548-7982
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 110.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B3.000 AMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 0.515 INCHES MINIMUM AND 0.547 INCHES MAXIMUM |
| BODY WIDTH | 0.922 INCHES MINIMUM AND 0.954 INCHES MAXIMUM |
| BODY HEIGHT | 1.172 INCHES MINIMUM AND 1.204 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 0.796 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| OVERALL LENGTH | 4.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.938 INCHES NOMINAL |
| ACTUATOR STYLE | ROUND |
| ACTUATOR DIAMETER | 0.265 INCHES MINIMUM AND 0.297 INCHES MAXIMUM |
| ACTUATOR HEIGHT | 1.218 INCHES MINIMUM AND 1.250 INCHES MAXIMUM |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MOMENTARY AND DOWN POSITION MAINTAINED AND CENTER POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| INCLOSURE TYPE | UNINCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.099 INCHES |
| THREAD QUANTITY PER INCH | 48 |
