NSN 5930-00-552-8747
Part Details | SENSITIVE SWITCH
5930-00-552-8747 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Alternate Parts: ES4372C3GEX, ES4-3-72C3GEX, 5930-00-552-8747, 00-552-8747, 5930005528747, 005528747
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-552-8747 | 00399 ( SWITCH, SENSITIVE ) |
REFERENCE DRAWINGS & PICTURES

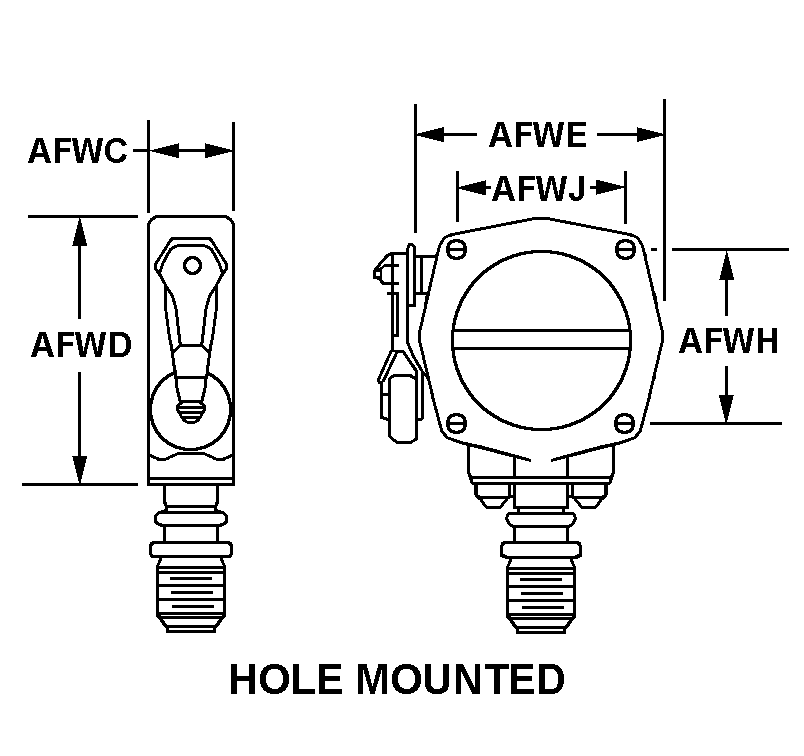

HOLE MOUNTED
ROUND
Cross Reference | NSN 5930-00-552-8747
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ES4-3-72C3GEX | 81640 | SAFRAN ELECTRICAL & POWER USA, LLCDBA LABINAL POWER SYSYEMS |
Technical Data | NSN 5930-00-552-8747
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C10.000 AMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| HOUSING HEIGHT | 1.030 INCHES NOMINAL |
| HOUSING LENGTH | 1.750 INCHES NOMINAL |
| HOUSING WIDTH | 2.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 1.375 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO WIDTH | 1.625 INCHES NOMINAL |
| OVERALL LENGTH | 74.190 INCHES NOMINAL |
| OVERALL WIDTH | 4.109 INCHES NOMINAL |
| ACTUATOR STYLE | ROUND |
| ACTUATOR HEIGHT | 2.109 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| SWITCH ACTUATING FORCE | 88.0 OUNCES MINIMUM AND 136.0 OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 60.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | C0.090 PRETRAVEL INCHES AND B0.250 OVERTRAVEL INCHES AND A0.022 DIFFERENTIAL INCHES |
| INCLOSURE TYPE | FULLY INCLOSED |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| MOUNTING METHOD | UNTHREADED HOLE |
| THREAD SERIES DESIGNATOR | UNEF |
| NOMINAL THREAD SIZE | 0.750 INCHES |
| CASE MATERIAL | METAL |
