NSN 5930-00-578-4036
Part Details | MERCURY SWITCH
5930-00-578-4036 A switch in which a mercury pool is used to bridge fixed contacts when their inclosing sealed capsule is tilted. Do not use if switch has an actuator, such as lever, push button, toggle, and the like. See SWITCH (as modified). For items in which a contact may be moved into a mercury pool by a magnetic field, see SWITCH, REED.
Alternate Parts: AS606A25, AS606A24, 859663, 1155638, AS606A24, 5930-00-578-4036, 00-578-4036, 5930005784036, 005784036
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-578-4036 | 00159 ( SWITCH, MERCURY ) |
REFERENCE DRAWINGS & PICTURES

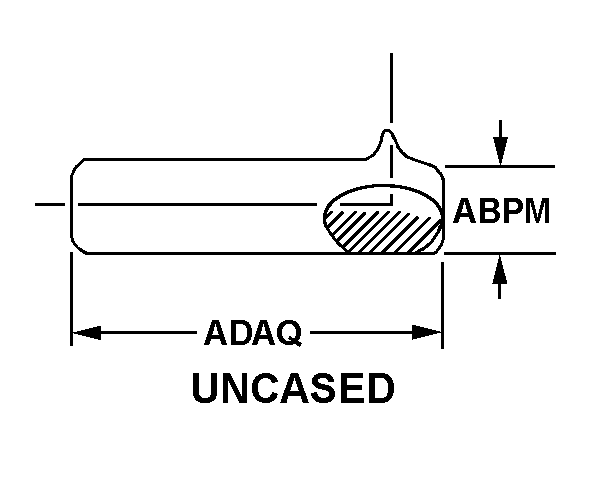

UNCASED
Cross Reference | NSN 5930-00-578-4036
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS606A25 | 91929 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| AS606A24 | 91929 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 859663 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 1155638 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| AS606A24 | R1120 | SATAIR A/S |
Technical Data | NSN 5930-00-578-4036
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 27.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C3.000 AMPERES RESISTIVE |
| BODY STYLE | UNCASED |
| BODY DIAMETER | 0.472 INCHES MINIMUM AND 0.512 INCHES MAXIMUM |
| BODY LENGTH | 1.844 INCHES MAXIMUM |
| OVERALL LENGTH | 1.844 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 4 WIRE LEAD |
| SWITCH ACTUATION DIFFERENTIAL ANGLE | 0.7 DEGREES MAXIMUM |
