NSN 5930-00-631-6907
Part Details | LEVER SWITCH
5930-00-631-6907 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Alternate Parts: PA222191, PA222-191, PA220191, PA220-191, A145S2B1, 5930-00-631-6907, 00-631-6907, 5930006316907, 006316907
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1963 | 00-631-6907 | 00175 ( SWITCH, LEVER ) |
REFERENCE DRAWINGS & PICTURES

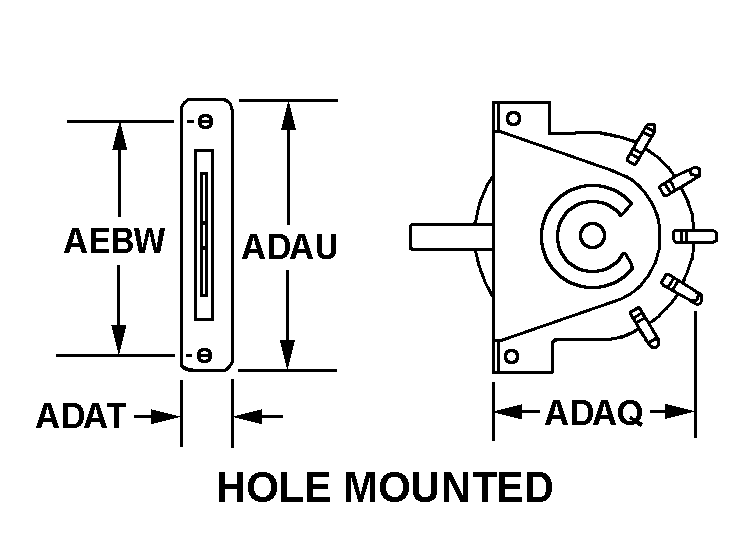

HOLE MOUNTED
ROUND
Cross Reference | NSN 5930-00-631-6907
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PA222-191 | 71590 | CRL COMPONENTS INC |
| PA220-191 | 25244 | JOHNSON CONTROLS, INC.DBA JOHNSON CONTROLS |
| A145S2B1 | 98473 | VIRGINIA ELECTRONICS CO INC |
Technical Data | NSN 5930-00-631-6907
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 110.0 AC AND 150.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C2.000 AMPERES RESISTIVE AND B150.000 MILLIAMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| BODY LENGTH | 1.359 INCHES MINIMUM AND 1.391 INCHES MAXIMUM |
| BODY WIDTH | 0.422 INCHES MINIMUM AND 0.454 INCHES MAXIMUM |
| BODY HEIGHT | 1.859 INCHES MINIMUM AND 1.891 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.609 INCHES MINIMUM AND 1.641 INCHES MAXIMUM |
| OVERALL WIDTH | 0.438 INCHES NOMINAL |
| OVERALL HEIGHT | 1.875 INCHES NOMINAL |
| ACTUATOR STYLE | 2 ROUND |
| ACTUATOR HEIGHT | 0.796 INCHES MINIMUM AND 0.828 INCHES MAXIMUM |
| TERMINAL TYPE AND QUANTITY | 12 TAB, SOLDER LUG |
