NSN 5930-00-755-7068
Part Details | PUSH SWITCH
5930-00-755-7068 A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lamp(s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes LIGHT-SWITCH; LIGHT-SWITCH ASSEMBLY; SWITCH, BEAM SELECTING, HEADLIGHT; SWITCH, FOOT; SWITCH, INTERLOCK; SWITCH, PRESSURE; SWITCH, PUSH-PULL; SWITCH, SENSITIVE and SWITCH ASSEMBLY. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see STARTER, MOTOR and CONTROLLER, MOTOR.
Alternate Parts: 08110107, 0811-0107, 5930-00-755-7068, 00-755-7068, 5930007557068, 007557068
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 01, 1960 | 00-755-7068 | 00406 ( SWITCH, PUSH ) |
REFERENCE DRAWINGS & PICTURES

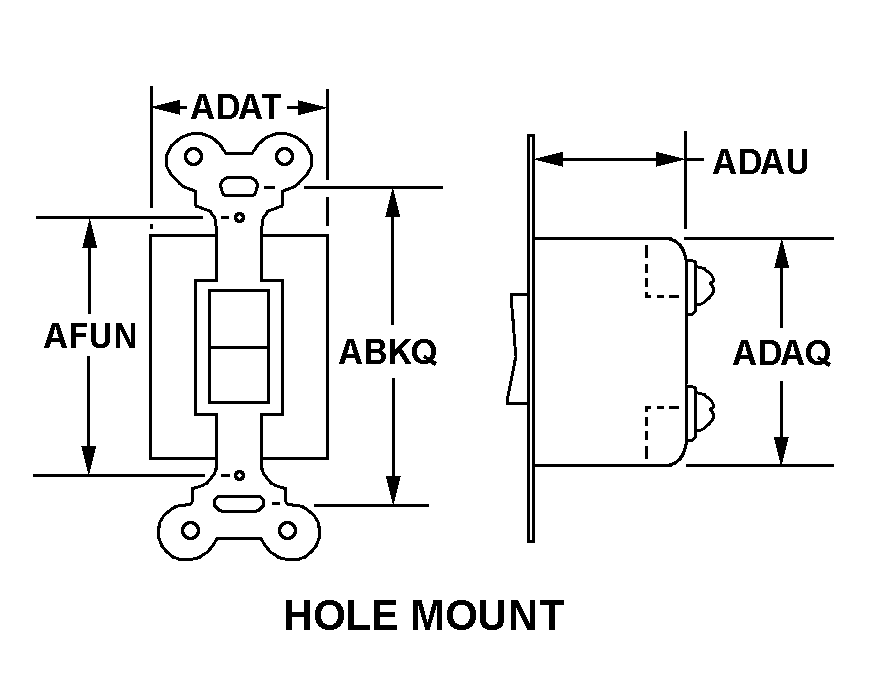

HOLE MOUNT
ROUND
Cross Reference | NSN 5930-00-755-7068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0811-0107 | 82634 | MCGILL MFG CO INCELECTRICAL DIV |
Technical Data | NSN 5930-00-755-7068
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | B20.000 AMPERES RESISTIVE AND B10.000 AMPERES INDUCTIVE |
| BODY STYLE | HOLE MOUNT |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.000 INCHES NOMINAL |
| BODY LENGTH | 1.236 INCHES NOMINAL |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL WIDTH | 0.795 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.619 INCHES MINIMUM AND 1.711 INCHES MAXIMUM |
| ACTUATOR STYLE | 7 ROUND |
| ACTUATOR LENGTH | 1.219 INCHES NOMINAL |
| ACTUATOR WIDTH | 0.650 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 6 QUICK DISCONNECT, MALE |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | BRACKET |
| SPECIAL FEATURES | SERRATED ACTUATOR |
| CASE MATERIAL | METAL |
