NSN 5930-00-863-4216
Part Details | LEVER SWITCH
5930-00-863-4216 A switch which is externally actuated by a lever and whose contacts open and close at a speed proportional to the speed at which the lever is operated. Includes pile-up lever switches and wafer lever switches. Excludes SWITCH, TOGGLE; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; SWITCH, BOX; and SWITCH, MERCURY.
Alternate Parts: PA222093, PA222-093, PA1467, 700685, 700-685, E2G0203N1, E2G0203N-1, 5930-00-863-4216, 00-863-4216, 5930008634216, 008634216
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | OCT 11, 1967 | 00-863-4216 | 00175 ( SWITCH, LEVER ) |

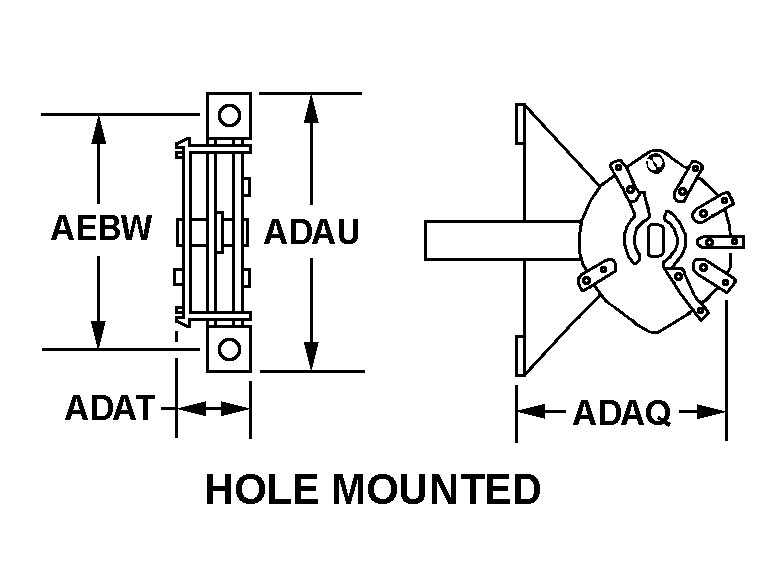

REFERENCE DRAWINGS & PICTURES
HOLE MOUNTED
ROUND
Cross Reference | NSN 5930-00-863-4216
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PA222-093 | 71590 | CRL COMPONENTS INC |
| PA1467 | 71590 | CRL COMPONENTS INC |
| 700-685 | 14031 | DIGITECH INDUSTRIES INC |
| E2G0203N-1 | 79692 | ELECTRO SWITCH CORP.DBA ELECTROSWITCH |
Technical Data | NSN 5930-00-863-4216
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 15.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C2.750 AMPERES RESISTIVE AND B230.000 MILLIAMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| BODY LENGTH | 1.375 INCHES NOMINAL |
| BODY WIDTH | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.137 INCHES NOMINAL |
| OVERALL WIDTH | 2.137 INCHES NOMINAL |
| OVERALL HEIGHT | 2.000 INCHES NOMINAL |
| ACTUATOR STYLE | 7 ROUND |
| TERMINAL TYPE AND QUANTITY | 6 TAB, SOLDER LUG |
| INCLOSURE TYPE | FULLY INCLOSED |
| MOUNTING METHOD | UNTHREADED HOLE |
| TEST DATA DOCUMENT | 14031-700-685 DRAWING (THIS IS THE BASIC GOVERNING DRAWING, SUCH AS A CONTRACTOR DRAWING, ORIGINAL EQUIPMENT MANUFACTURER DRAWING, ETC.; EXCLUDES ANY SPECIFICATION, STANDARD OR OTHER DOCUMENT THAT MAY BE REFERENCED IN A BASIC GOVERNING DRAWING) |
| PRECIOUS MATERIAL AND LOCATION | CLIPS AND ROTOR CONTACTS SILVER |
