NSN 5930-01-018-7319
Part Details | SENSITIVE SWITCH
5930-01-018-7319 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Alternate Parts: 28926311, 2892631-1, 28926311, 2892631-1, H61045, H6-1045, 5930-01-018-7319, 01-018-7319, 5930010187319, 010187319
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 30, 1976 | 01-018-7319 | 00399 ( SWITCH, SENSITIVE ) |

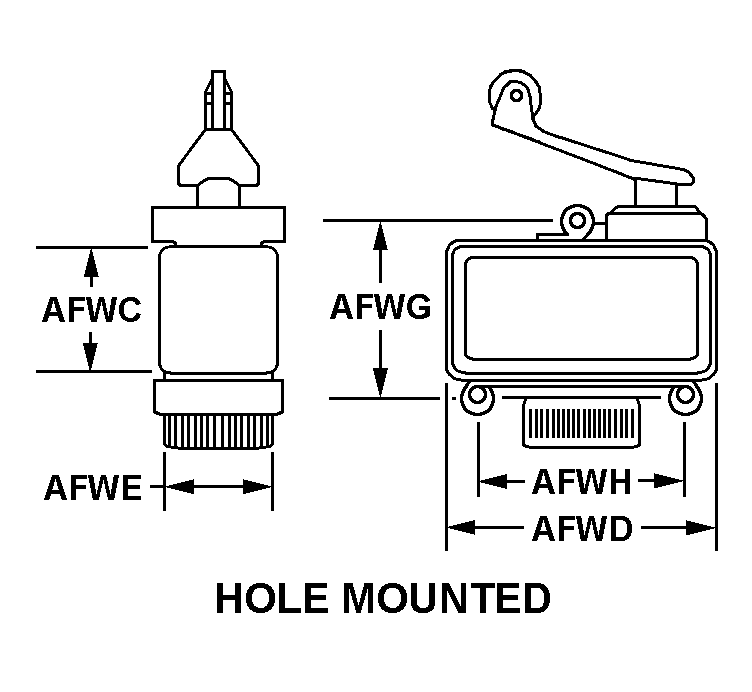

REFERENCE DRAWINGS & PICTURES
HOLE MOUNTED
Cross Reference | NSN 5930-01-018-7319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2892631-1 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
| 2892631-1 | 2B487 | RAYTHEON SERVICE COLOGISTICS SUPPORT CENTER |
| H6-1045 | 81640 | SAFRAN ELECTRICAL & POWER USA, LLCDBA LABINAL POWER SYSYEMS |
Technical Data | NSN 5930-01-018-7319
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 115.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C2.500 AMPERES INDUCTIVE AND B3.000 AMPERES INDUCTIVE |
| BODY STYLE | HOLE MOUNTED |
| HOUSING HEIGHT | 1.215 INCHES NOMINAL |
| HOUSING LENGTH | 1.360 INCHES NOMINAL |
| HOUSING WIDTH | 1.060 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO HEIGHT | 1.000 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN HOUSING MOUNTING FACILITIES PARALLEL TO LENGTH | 1.500 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE |
| SWITCH ACTUATING FORCE | 64.0 OUNCES MAXIMUM |
| ACTUATOR MOVEMENT | B0.250 OVERTRAVEL INCHES |
| INCLOSURE TYPE | HERMETICALLY SEALED |
