NSN 5930-01-148-6048
Part Details | SENSITIVE SWITCH
5930-01-148-6048 A switch with a quick-acting mechanism actuated by a highly delicate tactile contact. Includes membrane switch. Excludes SWITCH, FLEXIBLE; SWITCH, PRESSURE; and SWITCH, THERMOSTATIC.
Alternate Parts: 8AC11, 5930-01-148-6048, 01-148-6048, 5930011486048, 011486048
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | MAR 08, 1983 | 01-148-6048 | 00399 ( SWITCH, SENSITIVE ) |
REFERENCE DRAWINGS & PICTURES

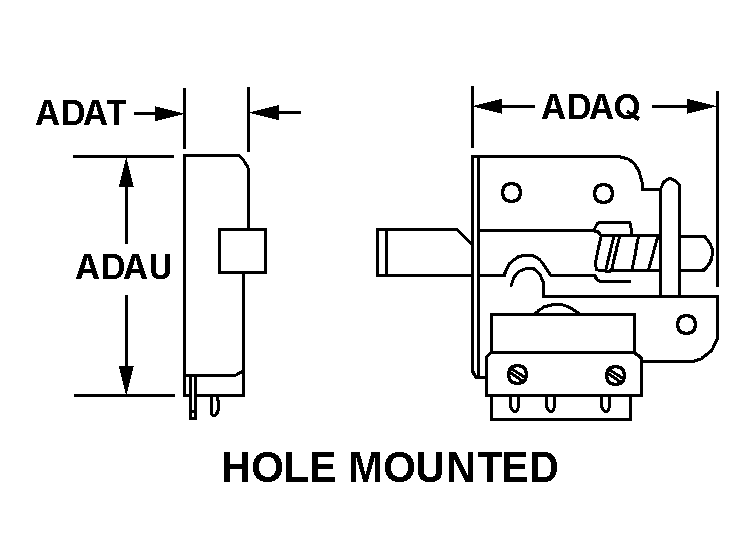

HOLE MOUNTED
ROUND
Cross Reference | NSN 5930-01-148-6048
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8AC11 | 91929 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 5930-01-148-6048
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 250.0 AC AND 30.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C5.000 AMPERES RESISTIVE AND C3.000 AMPERES INDUCTIVE AND B5.000 AMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| BODY LENGTH | 1.520 INCHES NOMINAL |
| BODY WIDTH | 0.590 INCHES NOMINAL |
| BODY HEIGHT | 1.590 INCHES NOMINAL |
| OVERALL LENGTH | 1.975 INCHES NOMINAL |
| OVERALL WIDTH | 0.650 INCHES NOMINAL |
| OVERALL HEIGHT | 1.590 INCHES NOMINAL |
| ACTUATOR STYLE | ROUND |
| ACTUATOR DIAMETER | 0.250 INCHES NOMINAL |
| ACTUATOR HEIGHT | 0.455 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 0.455 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| SWITCH ACTUATING FORCE | 3.0 INCH-OUNCES MINIMUM AND 5.0 INCH-OUNCES MAXIMUM |
| SWITCH RELEASE FORCE | 1.0 OUNCES MINIMUM |
| ACTUATOR MOVEMENT | A0.170 PRETRAVEL INCHES AND A0.130 OVERTRAVEL INCHES AND A0.155 DIFFERENTIAL INCHES |
| INCLOSURE TYPE | FULLY INCLOSED |
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD SIZE | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| PRECIOUS MATERIAL AND LOCATION | CONTACTS SILVER |
