NSN 5930-01-348-0374
Part Details | SLIDE SWITCH
5930-01-348-0374 A switch designed to be actuated by the sliding of a button, bar, or knob.
Alternate Parts: 78J04SRA, 31012938, 3101-2938, 31012938, 3101-2938, 5930-01-348-0374, 01-348-0374, 5930013480374, 013480374
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | NOV 04, 1991 | 01-348-0374 | 00400 ( SWITCH, SLIDE ) |
REFERENCE DRAWINGS & PICTURES

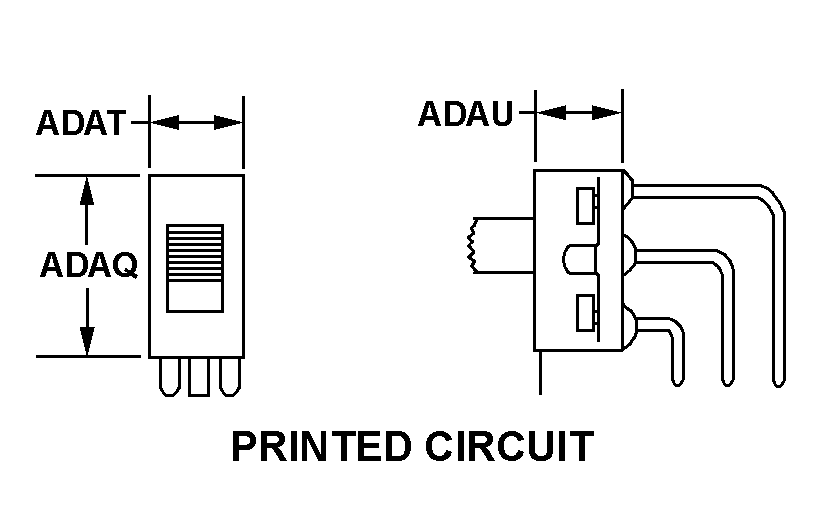

PRINTED CIRCUIT
ROUND
Cross Reference | NSN 5930-01-348-0374
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 78J04SRA | 81073 | GRAYHILL, INC |
| 3101-2938 | 28480 | HEWLETT-PACKARD COMPANYDBA HP |
| 3101-2938 | 1LQK8 | KEYSIGHT TECHNOLOGIES, INC. |
Technical Data | NSN 5930-01-348-0374
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 50.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C100.0 MILLIAMPERES RESISTIVE |
| BODY STYLE | PRINTED CIRCUIT |
| BODY LENGTH | 0.380 INCHES NOMINAL |
| BODY WIDTH | 0.886 INCHES NOMINAL |
| BODY HEIGHT | 0.285 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 4 |
| ACTUATOR STYLE | 0 ROUND |
| ACTUATOR POSITION-ACTION RELATIONSHIP | UP POSITION MAINTAINED AND DOWN POSITION MAINTAINED |
| TERMINAL TYPE AND QUANTITY | 8 TAB, SOLDER LUG |
| MOUNTING METHOD | PRINTED CIRCUIT |
