NSN 5930-01-440-9028
Part Details | TOGGLE SWITCH
5930-01-440-9028 A switch which is externally actuated by a lever and whose contacts open and close with an instantaneous (snap) action; includes items having one or more momentary positions. Includes switches (snap action) which use mercury to bridge contacts, and assemblages of complete switches (snap action) having common actuators. Excludes SWITCH, LEVER; SWITCH, ROTARY; SWITCH, KNIFE; SWITCH, SENSITIVE; and SWITCH, BOX.
Alternate Parts: 5734, 5930-01-440-9028, 01-440-9028, 5930014409028, 014409028
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | JAN 28, 1997 | 01-440-9028 | 00184 ( SWITCH, TOGGLE ) |

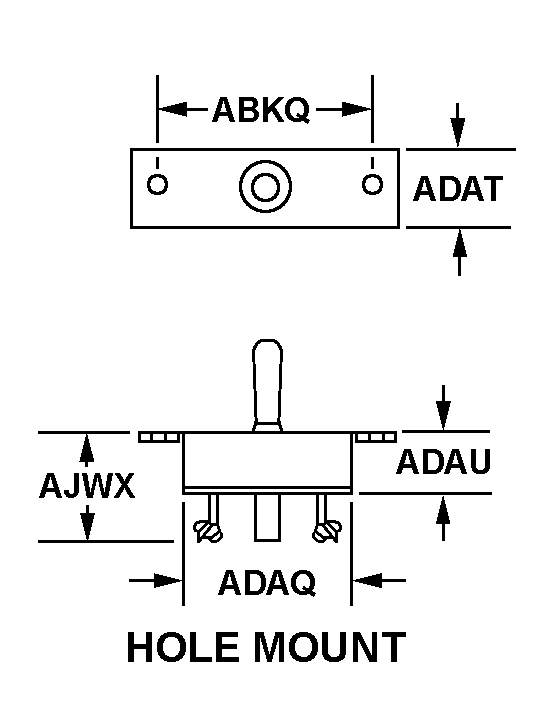

REFERENCE DRAWINGS & PICTURES
HOLE MOUNT
ROUND
Cross Reference | NSN 5930-01-440-9028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5734 | 75582 | LEVITON MANUFACTURING CO., INC.DBA LEVITON |
Technical Data | NSN 5930-01-440-9028
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 125.0 AC AND 250.0 AC |
| BODY STYLE | HOLE MOUNT |
| BODY LENGTH | 1.312 INCHES NOMINAL |
| BODY WIDTH | 0.719 INCHES NOMINAL |
| BODY HEIGHT | 0.719 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.125 INCHES NOMINAL |
| SWITCH ACTUATOR QUANTITY | 1 |
| ACTUATOR STYLE | 5 ROUND |
| ACTUATOR HEIGHT | 0.688 INCHES NOMINAL |
| MOUNTING METHOD | MALE PRONG |
| SPECIAL FEATURES | HEAVY DUTY METAL BAT TOGGLE;PHENOLIC BARRIERS SEPARATE INTERNAL CONTACTS OF OPPOSITE POLARITY FOR ADDED PROTECTION AGAINST SHORTS |
